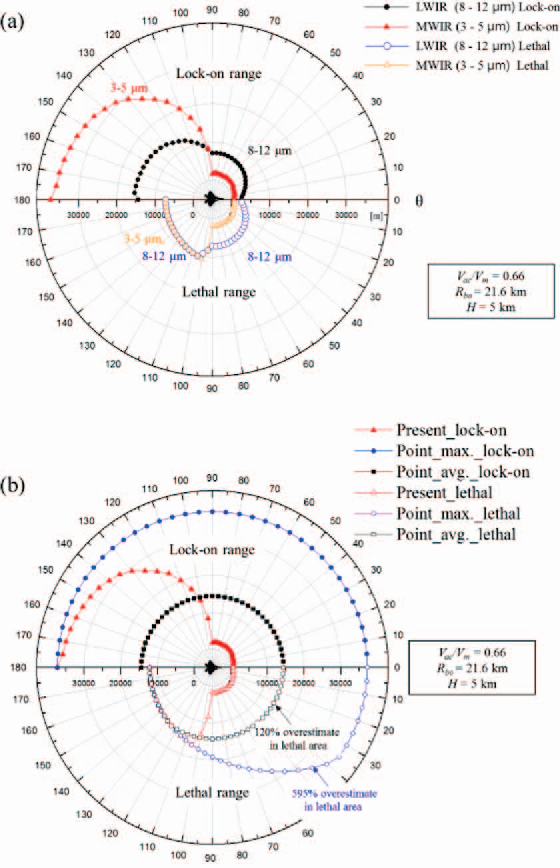

Fig. 8. Lock-on range (upper half) and lethal range (lower half) of aircraft as function of detection angle (a) in typical air-to-air combat scenario with anisotropic source assumption and (b) with anisotropic and point assumption in MWIR detection band.
Kim, Taehwan et al. “Susceptibility of combat aircraft modeled as an anisotropic source of infrared radiation.” IEEE Transactions on Aerospace and Electronic Systems 52 (2016): 2467-2476. https://www.semanticscholar.org/paper/Susceptibility-of-combat-aircraft-modeled-as-an-of-Kim-Lee/0883ee48f9b0572024fd23f5387ac85b309d1385
