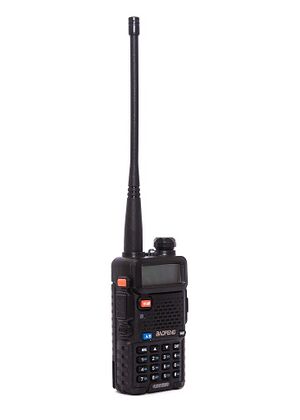

| Baofeng UV-5R | |
|---|---|
| Technical Data | |
| Frequency range | 136–174 MHz 400–520 MHz |
| Frequency steps | 2.5–50k Hz |
| Transmitter power output | 5 W PEP |
| Waveforms (modulations) | FM |
| modulation rate | |
| Power input | Receiver only 20 mA, Transmitter 1 A max. |
| Operating voltage | 6.5 – 9 V, Nominal voltage 7.2 V |
| Measurements and Weight | |
| High | 140 mm |
| Width | 70 mm |
| Depth | 30 mm |
| Weight | ca. 400 Gramm |
| Further informations | |
| Producer | Baofeng |
| Scope of application | radio amateurs, (semi-) professional users |
The Baofeng UV-5R is a hand held radio manufactured by the Chinese manufacturer Baofeng. This model was the first worldwide successful distributed dual band radio (VHF/UHF) of a Chinese brand. It is inexpensive and relatively simple in use, because of this it is used by radio amateurs as well as professional users worldwide.[1][2] Due to Ofcom regulations, a variety of Baofengs ranging from UV-5R to the UV-21 are not able to broadcast in the United Kingdom between 480Mhz-520Mhz despite being advertised to transmit between UHF 400-520mhz.
History
The Baofeng UV-5R has been produced since 2012 and exported to markets worldwide. The radio had no FCC Part 95 certification[3] in the United States. As a result, it was not authorized for use in the GMRS and FRS, only for amateur radio.[4][5] Baofeng launched a number of other models based on the UV-5R technology, since 2012. Other radios from other Chinese manufacturers have mainly the same range of functions, specs and menu like the UV-5R, for example the Retevis RT5.[6]
The UV-5R has attracted the attention of multiple telecommunications regulators due to problems relating primarily to frequency interference, and is banned from sale and use in Switzerland, Germany, Poland and South Africa. The German Federal Network Agency has banned the device because it dampens harmonics too poorly and can therefore disturb other users.[7] The Independent Communications Authority of South Africa issued a ban after finding the UV-5R to be causing radio frequency interference, and for having continuous tuning capabilities; a feature that would require an operator obtain a Frequency allocation license before purchasing or using the device.[8]
Features
It is designed to transmit on the 2 meter band between 136 and 174 MHz (VHF) and on the 70 Centimeter-band between 400 and 520 MHz (UHF). (480mhz and above is not available in the UK due to Ofcom regulations). Features include CTCSS, Digital coded squelch, 128 programming channels[9] and duplex operation for use with local repeaters, dual watch and dual reception, an LED flashlight, voice prompts in either English or Chinese and programmable LED lighting for the LCD display.[10][11]
Programming channels and frequencies by hand is harder and cumbersome. Programming via a computer is much easier using the CHIRP application and a specific USB to radio cable.
