Type of aircraft


JAS 39 Gripen
File:Saab JAS 39 Gripen at Kaivopuisto Air Show, June 2017 (altered) copy.jpg
A Swedish Air Force JAS 39 Gripen at Kaivopuisto Air Show
Role Multirole fighter
National origin Sweden
Manufacturer Saab AB
Design group Industrigruppen JAS, FMV
First flight 9 December 1988
Introduction 9 June 1996[1]
Status In service
Primary users Swedish Air Force
Brazilian Air Force
South African Air Force
Hungarian Air Force
Produced 1987–present
Number built ~300 (2023)[2]

The Saab JAS 39 Gripen (Template:IPA-sv Template:Pronunciation; English: griffin)[Nb 1]Lua error: not enough memory.Lua error: not enough memory. is a light single-engine supersonic multirole fighter aircraft manufactured by the Swedish aerospace and defence company Saab AB. The Gripen has a delta wing and canard configuration with relaxed stability design and fly-by-wire flight controls. Later aircraft are fully NATO interoperable. As of 2020Lua error: not enough memory., more than 271 Gripens of all models, A–F, have been delivered.[Nb 2]

In 1979, the Swedish government began development studies for "an aircraft for fighter, attack, and reconnaissance" (ett jakt-, attack- och spaningsflygplan, hence "JAS") to replace the Saab 35 Draken and 37 Viggen in the Swedish Air Force. A new design from Saab was selected and developed as the JAS 39. The first flight took place in 1988, with delivery of the first serial production airplane in 1993.[1] It entered service with the Swedish Air Force in 1996.[1] Upgraded variants, featuring more advanced avionics and adaptations for longer mission times, began entering service in 2003.

To market the aircraft internationally, Saab formed partnerships and collaborative efforts with overseas aerospace companies. On the export market, early models of the Gripen achieved moderate success, with sales to nations in Central Europe, South Africa, and Southeast Asia. Bribery was suspected in some of these procurements, but Swedish authorities closed the investigation in 2009.[4]

A major redesign of the Gripen series, previously referred to as Gripen NG (Next Generation) or Super JAS, now designated JAS 39E/F Gripen[5] began deliveries to the Swedish Air Force and Brazilian Air Force in 2019. Changes from the JAS C to JAS E include a larger fuselage, a more powerful engine, an increased weapons payload capability, and new cockpit, avionics architecture, electronic warfare system and other improvements.

Development

Origins

In the late 1970s, Sweden sought to replace its aging Saab 35 Draken and Saab 37 Viggen. The Swedish Air Force required an affordable Mach 2 aircraft with good short-field performance for a defensive dispersed basing plan in the event of invasion; the plan included 800 m long by 17 m wide rudimentary runways that were part of the Bas 90 system. One goal was for the aircraft to be smaller than the Viggen while equalling or improving on its payload-range characteristics. Early proposals included the Saab 38, also called B3LA, intended as an attack aircraft and trainer, and the A 20, a development of the Viggen that would have capabilities as a fighter, attack and sea reconnaissance aircraft. Several foreign designs were also studied, including the General Dynamics F-16 Fighting Falcon, the McDonnell Douglas F/A-18 Hornet, the Northrop F-20 Tigershark and the Dassault Mirage 2000. Ultimately, the Swedish government opted for a new fighter to be developed by Saab.

In 1979, the government began a study calling for a versatile platform capable of "JAS", standing for Jakt(air-to-air), Attack (air-to-surface), and Spaning(reconnaissance), indicating a multirole, or swingrole, fighter aircraft that can fulfill multiple roles during the same mission. Several Saab designs were reviewed, the most promising being "Project 2105" (redesignated "Project 2108" and, later, "Project 2110"), recommended to the government by the Defence Materiel Administration (Försvarets Materielverk, or FMV). In 1980, Industrigruppen JAS (IG JAS, "JAS Industry Group") was established as a joint venture by Saab-Scania, LM Ericsson, Svenska Radioaktiebolaget, Volvo Flygmotor and Försvarets Fabriksverk, the industrial arm of the Swedish armed forces.

The preferred aircraft was a single-engine, lightweight single-seater, embracing fly-by-wire technology, canards, and an aerodynamically unstable design. The powerplant selected was the Volvo-Flygmotor RM12, a licence-built derivative of the General Electric F404−400; engine development priorities were weight reduction and lowering component count. On 30 June 1982, with approval from the Riksdag, the FMV issued contracts worth SEK 25.7 billion to Saab, covering five prototypes and an initial batch of 30 production aircraft. By January 1983, a Viggen was converted to a flying test aircraft for the JAS 39's intended avionics, such as the fly-by-wire controls. The JAS 39 received the name Gripen (griffin) via a public competition, which is the heraldry on Saab's logo.

Testing, production, and improvements

Saab rolled out the first Gripen on 26 April 1987, marking the company's 50th anniversary.Originally planned to fly in 1987, the first flight was delayed by 18 months due to issues with the flight control system. On 9 December 1988, the first prototype (serial number 39-1) took its 51-minute maiden flight with pilot Stig Holmström at the controls. During the test programme, concern surfaced about the aircraft's avionics, specifically the fly-by-wire flight control system (FCS), and the relaxed stability design. On 2 February 1989, this issue led to the crash of the prototype during an attempted landing at Linköping; the test pilot Lars Rådeström walked away with a broken elbow. The cause of the crash was identified as pilot-induced oscillation, caused by problems with the FCS's pitch-control routine.

In response to the crash, Saab and US firm Calspan introduced software modifications to the aircraft. A modified Lockheed NT-33A was used to test these improvements, which allowed flight testing to resume 15 months after the accident. On 8 August 1993, production aircraft 39102 was destroyed in an accident at an aerial display for the Stockholm Water Festival. Test pilot Rådeström lost control of the aircraft during a roll at low altitude when the aircraft stalled, forcing him to eject. Saab later found the problem was high amplification of the pilot's quick and significant stick command inputs. The ensuing investigation and flaw correction further delayed test flying by several months, resuming in December 1993.

The first order included an option for another 110, which was exercised in June 1992. Batch II consisted of 96 one-seat JAS 39As and 14 two-seat JAS 39Bs. The JAS 39B variant is 66 cm (26 in) longer than the JAS 39A to accommodate a second seat, which also necessitated the deletion of the cannon and a reduced internal fuel capacity.By April 1994, five prototypes and two series-production Gripens had been completed; but a beyond-visual-range missile (BVR) had not yet been selected. A third batch was ordered in June 1997, composed of 50 upgraded single-seat JAS 39Cs and 14 JAS 39D two-seaters, known as 'Turbo Gripen', with NATO compatibility for exports.Batch III aircraft, delivered between 2002 and 2008, possess more powerful and updated avionics, in-flight refuelling capability via retractable probes on the aircraft's starboard side, and an on-board oxygen-generating system (OBOGS) for longer duration missions. In-flight refuelling was tested via a specially equipped prototype (39‐4) used in successful trials with a Royal Air Force VC10 in 1998.

Teaming agreements

During the 1995 Paris Air Show, Saab Military Aircraft and British Aerospace (BAe, now BAE Systems) announced the formation the joint-venture company Saab-BAe Gripen AB with the goal of adapting, manufacturing, marketing and supporting Gripen worldwide. The deal involved the conversion of the A and B series aircraft to the "export" C and D series, which developed the Gripen for compatibility with NATO standards. This co-operation was extended in 2001 with the formation of Gripen International to promote export sales.In December 2004, Saab and BAE Systems announced that BAE was to sell a large portion of its stake in Saab, and that Saab would take full responsibility for marketing and export orders of the Gripen. In June 2011, Saab announced that an internal investigation revealed evidence of acts of corruption by BAE Systems, including money laundering in South Africa, one of the Gripen's customers.

On 26 April 2007, Norway signed a NOK150 million joint-development agreement with Saab to co-operate in the development programme of the Gripen, including the integration of Norwegian industries in the development of future versions of the aircraft. In June of the same year, Saab also entered an agreement with Thales Norway A/S concerning the development of communications systems for the Gripen fighter. This order was the first awarded under the provisions of the Letter of Agreement signed by the Norwegian Ministry of Defence and Gripen International in April 2007.As a result of the United States diplomatic cables leak in 2010, it was revealed that US diplomats had become concerned with co-operation between Norway and Sweden on the topic of the Gripen, and had sought to exert pressure against a Norwegian purchase of the aircraft.

In December 2007, as part of Gripen International's marketing efforts in Denmark, a deal was signed with Danish technology supplier Terma A/S that let them participate in an Industrial Co-operation programme over the next 10–15 years. The total value of the programme was estimated at over DKK10 billion, and was partly dependent on a procurement of the Gripen by Denmark.Subsequently, Denmark elected to procure the F-35 Joint Strike Fighter.

Controversies, scandals, and costs

Developing an advanced multi-role fighter was a major undertaking for Sweden. The predecessor 37 Viggen had been criticized for occupying too much of Sweden's military budget and was branded "a cuckoo in the military nest" by critics as early as 1971. At the 1972 party congress of the Socialdemokraterna, the dominant party in Swedish politics since the 1950s, a motion was passed to stop any future projects to develop advanced military aircraft. In 1982, the Gripen project passed in the Riksdag by a margin of 176 for and 167 against, with the entire Social Democratic party voting against the proposal due to demands for more studies. A new bill was introduced in 1983and a final approval was given in April 1983 with the condition that the project was to have a predetermined fixed-price contract, a decision that would later be criticized as unrealistic due to later cost overruns.

According to Annika Brändström, in the aftermath of the 1989 and 1993 crashes, the Gripen risked a loss of credibility and the weakening of its public image. There was public speculation that failures to address technical problems exposed in the first crash had directly contributed to the second crash, which thus had been avoidable. Brändström observed that media elements had called for greater public accountability and explanation of the project; ill-informed media analysis had also distorted public knowledge of the Gripen. The sitting Conservative government quickly endorsed and supported the Gripen – Minister of Defense Anders Björck issued a public reassurance that the project was very positive for Sweden. In connection to the Gripen's marketing efforts to multiple countries, including South Africa, Austria, the Czech Republic and Hungary, there were reports of widespread bribery and corruption by BAE Systems and Saab. In 2007, Swedish journalists reported that BAE had paid bribes equivalent to millions of dollars. Following criminal investigations in eight countries, only one individual in Austria, Alfons Mensdorf-Pouilly, was prosecuted for bribery. The scandal tarnished the international reputation of the Gripen, BAE Systems, Saab, and Sweden.

The Gripen's cost has been subject to frequent attention and speculation. In 2008, Saab announced reduced earnings for that year, partly attributing this to increased marketing costs for the aircraft. In 2008, Saab disputed Norway's cost calculations for the Gripen NG as overestimated and in excess of real world performance with existing operators. A 2007 report by the European Union Institute for Security Studies stated the total research and development costs of Gripen were €1.84 billion.According to a study by Jane's Information Group in 2012, the Gripen's operational cost was the lowest among several modern fighters; it was estimated at $4,700 per flight hour. The Swedish Ministry of Defense estimated the cost of the full system, comprising 60 Gripen E/F, at SEK 90 billion distributed over the period 2013–42. The Swedish Armed Forces estimated that maintaining 100 C/D-model aircraft until 2042 would cost SEK 60 billion (€6.6 billion in 2013), while buying aircraft from a foreign supplier would cost SEK 110 billion (€12.1 billion).

Operational costs

Price of purchase is what gets most attention during the procurement process, but over the lifetime of an aircraft system the operating costs will take the larger part of the total budget. It is not uncommon that pilots and aircraft remain on the ground because the allocated funds for training have run out. Without sufficient practice, pilots cannot use the abilities of the aircraft to their full potential, which means a state of the art aircraft with poorly trained pilots can be expected to perform worse than trained pilots in slightly less capable aircraft.

Cost per flight hour (CPFH)
Source JAS 39 F-35 Eurofighter Rafale F/A-18 E/F F-16 Block 40/50
IHS Jane's

2012

39C: US$5,800 F-35A:   US$25,950

F-35B/C: US$ 38,300

US$ 22,200,

whereof fuel US$ 10,100

US$ 20,400 US$ 13,600 US$ 8,700
ÖBMicael Bydén

2014

SEK 54,300
Flygrevyn

2021

SEK 32,100 SEK 144,900 SEK 125,200 SEK 114,900 SEK 76,600 SEK 48,600
All values are compensated for inflation and given in 2022 year's currency value rounded to neared hundreds.


Note that each source has used their own calculation model and thus are not directly comparative with each other.

JAS 39E/F and other developments

A two-seat aircraft, designated "Gripen Demo", was ordered in 2007 as a testbed for various upgrades. It was powered by the General Electric F414G, a development of the Boeing F/A-18E/F Super Hornet's engine. The Gripen NG's maximum takeoff weight was increased from 14,000 to 16,000 kg (30,900–35,300 lb), internal fuel capacity was increased by 40 per cent by relocating the undercarriage, which also allowed for two additional hardpoints be added on the fuselage underside. Its combat radius was 1,300 kilometres (810 mi) when carrying six AAMs and drop tanks. The PS-05/A radar is replaced by the new Raven ES-05 active electronically scanned array (AESA) radar, which is based on the Vixen AESA radar family from Selex ES (since 2016 Finmeccanica, then Leonardo S.p.A.). The Gripen Demo's maiden flight was conducted on 27 May 2008. On 21 January 2009, the Gripen Demo flew at Mach 1.2 without reheat to test its supercruise capability. The Gripen Demo served as a basis for the Gripen E/F, also referred to as the Gripen NG (Next Generation) and MS (Mission System) 21.

Saab studied a variant of the Gripen capable of operating from aircraft carriers in the 1990s. In 2009, it launched the Sea Gripen project in response to India's request for information on a carrier-based aircraft. Brazil may also require new carrier aircraft. Following a meeting with Ministry of Defence (MoD) officials in May 2011, Saab agreed to establish a development center in the UK to expand on the Sea Gripen concept. In 2013, Saab's Lennart Sindahl stated that development of an optionally manned Gripen E capable of flying unmanned operations was being explored by the firm; further development of optionally manned and carrier versions would require customer commitment. On 6 November 2014, the Brazilian Navy expressed interest in a carrier-based Gripen.

In 2010, Sweden awarded Saab a four-year contract to improve the Gripen's radar and other equipment, integrate new weapons, and lower its operating costs. In June 2010, Saab stated that Sweden planned to order the Gripen NG, designated JAS 39E/F, and was to enter service in 2017 or earlier dependent on export orders. On 25 August 2012, following Switzerland's intention to buy 22 of the E/F variants, Sweden announced it planned to buy 40–60 Gripen E/Fs. On 17 January 2013, the Swedish government decided to purchase 60 Gripen Es. Subsequent to a national referendum in 2014 Switzerland decided not to procure replacement fighters and postponed their procurement process.

In July 2013, assembly began on the first pre-production Gripen E. Originally 60 JAS 39Cs were to be retrofitted as JAS 39Es by 2023, but this was revised to Gripen Es having new-built airframes and some reused parts from JAS 39Cs.In March 2014, Saab revealed the detailed design and indicated plans to receive military type certification in 2018. The first Gripen E was rolled out on 18 May 2016. Saab delayed the first flight from 2016 to 2017 to focus on civilian-grade software certification; high speed taxi tests began in December 2016. In September 2015, Saab Aeronautics head Lennart Sindahl announced that an Electronic Warfare version of the Gripen F two-seater was under development. On 15 June 2017, Saab completed the Gripen E's first flight.By May 2018, the Gripen E had attained supersonic flight and was to commence load tests. On 24 November 2021, Saab announced that the first six Gripen Es were ready to be delivered to the Swedish and Brazilian air forces. The flight test programme with pre-production Gripen Es continued even after initial deliveries to both the Swedish and Brazilian Air Forces.

Design

Underside of a Gripen in flight, 2012

Overview

The Gripen is a multirole fighter aircraft, intended as a light-weight and agile aerial platform with advanced, highly adaptable avionics. It has canard control surfaces that contribute a positive lift force at all speeds, while the generous lift from the delta wing compensates for the rear stabiliser producing negative lift at high speeds, increasing induced drag. Being intentionally unstable and employing digital fly-by-wire flight controls to maintain stability removes many flight restrictions, improves manoeuvrability, and reduces drag. The Gripen also has good short takeoff performance, being able to maintain a high sink rate and strengthened to withstand the stresses of short landings. A pair of air brakes are located on the sides of the rear fuselage; the canards also angle downward to act as air brakes and decrease landing distance. It is capable of flying at a 70–80 degrees angle of attack.

To enable the Gripen to have a long service life, roughly 50 years, Saab designed it to have low maintenance requirements. Major systems such as the RM12 engine and PS-05/A radar are modular to reduce operating cost and increase reliability.The Gripen was designed to be flexible, so that newly developed sensors, computers, and armaments could be integrated as technology advances. The aircraft was estimated to be roughly 67% sourced from Swedish or European suppliers and 33% from the US.

One key aspect of the Gripen programme that Saab have been keen to emphasize has been technology-transfer agreements and industrial partnerships with export customers. The Gripen is typically customized to customer requirements, enabling the routine inclusion of local suppliers in the manufacturing and support processes. A number of South African firms provide components and systems – including the communications suite and electronic warfare systems – for the Gripens operated by the South African Air Force.Operators also have access to the Gripen's source code and technical documentation, allowing for upgrades and new equipment to be independently integrated. Some export customers intend to domestically assemble the Gripen; it has been proposed that Brazilian aerospace manufacturer Embraer may produce Gripens for other export customers as well.

Avionics and sensors

All of the Gripen's avionics are fully integrated using five MIL-STD-1553B digital data buses, in what is described as "sensor fusion". The total integration of the avionics makes the Gripen a "programmable" aircraft, allowing software updates to be introduced over time to increase performance and allow for additional operational roles and equipment. The Ada programming language was adopted for the Gripen, and is used for the primary flight controls on the final prototypes from 1996 onwards and all subsequent production aircraft.The Gripen's software is continuously being improved to add new capabilities, as compared to the preceding Viggen, which was updated only in an 18-month schedule.

Much of the data generated from the onboard sensors and by cockpit activity is digitally recorded throughout the length of an entire mission. This information can be replayed in the cockpit or easily extracted for detailed post-mission analysis using a data transfer unit that can also be used to insert mission data to the aircraft. The Gripen, like the Viggen, was designed to operate as one component of a networked national defence system, which allows for automatic exchange of information in real-time between Gripen aircraft and ground facilities. According to Saab, the Gripen features "the world's most highly developed data link".The Gripen's Ternav tactical navigation system combines information from multiple onboard systems such as the air data computer, radar altimeter, and GPS to continuously calculate the Gripen's location.

The Gripen entered service using the PS-05/A pulse-Doppler X band multi-mode radar, developed by Ericsson and GEC-Marconi, which is based on the latter's advanced Blue Vixen radar for the Sea Harrier that also served as the basis for the Eurofighter's CAPTOR radar. The all-weather radar is capable of locating and identifying targets 120 km (74 mi) away, and automatically tracking multiple targets in the upper and lower spheres, on the ground and sea or in the air. It can guide several beyond visual range air-to-air missiles to multiple targets simultaneously. Saab stated the PS-05/A is able to handle all types of air defence, air-to-surface, and reconnaissance missions, and is developing a Mark 4 upgrade to it. The Mark 4 version has a 150% increase in high-altitude air-to-air detection ranges, detection and tracking of smaller targets at current ranges, 140% improvement in air-to-air mode at low altitude, and full integration of modern weapons such as the AIM-120C-7 AMRAAM, AIM-9X Sidewinder, and MBDA Meteor missiles.

The future Gripen E/F will use a new AESA radar, Raven ES-05, based on the Vixen AESA radar family from Selex ES. Among other improvements, the new radar is to be capable of scanning over a greatly increased field of view and improved range. In addition, the new Gripen integrates the Skyward-G Infra-red search and track (IRST) sensor, which is capable of passively detecting thermal emissions from air and ground targets in the aircraft's vicinity. The sensors of the Gripen E are claimed to be able to detect low radar cross-section (RCS) targets at beyond visual range. Targets are tracked by a "best sensor dominates" system, either by onboard sensors or through the Transmitter Auxiliary Unit (TAU) data link function of the radar.

Cockpit

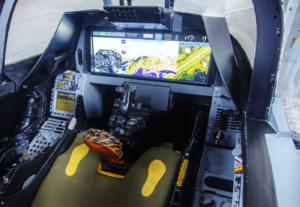

Cockpit of Brazilian Gripen NG with Wide Area Display
JAS-39C Gripen cockpit


The primary flight controls are compatible with the Hands On Throttle-And-Stick (HOTAS) control principle – the centrally mounted stick, in addition to flying the aircraft, also controls the cockpit displays and weapon systems. A triplex, digital fly-by-wire system is employed on the Gripen's flight controls, with a mechanical backup for the throttle.Additional functions, such as communications, navigational and decision support data, can be accessed via the Up Front Control Panel, directly above the central cockpit display. The Gripen includes the EP-17 cockpit display system, developed by Saab to provide pilots with a high level of situational awareness and reduces pilot workload through intelligent information management. The Gripen features a sensor fusion capability, information from onboard sensors and databases is combined, automatically analysed, and useful data is presented to the pilot via a wide field-of-view Head-Up Display, three large multi-function colour displays, and optionally a Helmet Mounted Display System (HMDS).

Of the three multi-function displays (MFD), the central display is for navigational and mission data, the display to the left of the center shows aircraft status and electronic warfare information, and the display to the right of the center has sensory and fire control information. In two-seat variants, the rear seat's displays can be operated independently of the pilot's own display arrangement in the forward seat. Saab has promoted this capability as being useful during electronic warfare and reconnaissance missions, and while carrying out command and control activities. In May 2010, Sweden began equipping their Gripens with additional onboard computer systems and new displays. The MFDs are interchangeable and designed for redundancy in the event of failure, flight information can be presented on any of the displays.

Saab and BAE developed the Cobra HMDS for use in the Gripen, based on the Striker HMDS used on the Eurofighter. By 2008, the Cobra HMDS was fully integrated on operational aircraft, and is available as an option for export customers; it has been retrofitted into older Swedish and South African Gripens. The HMDS provides control and information on target cueing, sensor data, and flight parameters, and is optionally equipped for night time operations and with chemical/biological filtration. All connections between the HMDS and the cockpit were designed for rapid detachment, for safe use of the ejection system.

Engine

Further information: Volvo RM12


All in-service Gripens as of January 2014 are powered by a Volvo RM12 turbofan engine (now GKN Aerospace Engine Systems), a licence-manufactured derivative of General Electric F404, fed by a Y-duct with splitter plates; changes include increased performance and improved reliability to meet single engine use safety criteria, as well as a greater resistance to bird strike incidents.Several subsystems and components were also redesigned to reduce maintenance demands. By November 2010, the Gripen had accumulated over 143,000 flight hours without a single engine-related failure or incident; Rune Hyrefeldt, head of Military Program management at Volvo Aero, stated: "I think this must be a hard record to beat for a single-engine application".

Like the Gripen, test models of the Dassault Rafale used F404 engines until replaced by the SNECMA M88-2 engine on production aircraft. A JAS 39C variant powered by a new 80–93 kN (8,200–9,500 kgf; 18,000–21,000 lbf) thrust SNECMA M88-3 engine was proposed. The M88-3 variant would have a new low pressure compressor (LPC) with a new variable stator vane stage and an increased mass flow of 73.4 kg/s (9,710 lb/min).

The JAS 39E and F variants under development are to adopt the F414G powerplant, a variant of the General Electric F414. The F414G can produce 20% greater thrust than the current RM12 engine, enabling the Gripen to supercruise at a speed of Mach 1.1 while carrying an air-to-air combat payload. In 2010, Volvo Aero stated it was capable of further developing its RM12 engine to better match the performance of the F414G, and claimed that developing the RM12 would be a less expensive option. Prior to Saab's selection of the F414G, the Eurojet EJ200 had also been under consideration for the Gripen; proposed implementations included the use of thrust vectoring.

Equipment and armaments

The Gripen is compatible with a number of different armaments, beyond the aircraft's single 27 mm Mauser BK-27 cannon (omitted on the two-seat variants), including air-to-air missiles such as the AIM-9 Sidewinder, air-to-ground missiles such as the AGM-65 Maverick, and anti-ship missiles such as the RBS-15. In 2010, the Swedish Air Force's Gripen fleet completed the MS19 upgrade process, enabling compatibility with a range of weapons, including the long-range MBDA Meteor missile, the short-range IRIS-T missile and the GBU-49 laser-guided bomb. Speaking on the Gripen's selection of armaments, Saab's campaign director for India, Edvard de la Motte stated that: "If you buy Gripen, select where you want your weapons from: Israel, Sweden, Europe, US… South America. It's up to the customer".

In flight, the Gripen is typically capable of carrying up to 6,500 kg (14,330 lb) of assorted armaments and equipment. Equipment includes external sensor pods for reconnaissance and target designation, such as Rafael's LITENING targeting pod, Saab's Modular Reconnaissance Pod System, or Thales' Digital Joint Reconnaissance Pod. The Gripen has an advanced and integrated electronic warfare suite, capable of operating in an undetectable passive mode or to actively jam hostile radar; a missile approach warning system passively detects and tracks incoming missiles. In November 2013, it was announced that Saab will be the first to offer the BriteCloud expendable Active jammer developed by Selex ES. In June 2014, the Enhanced Survivability Technology Modular Self Protection Pod, a defensive missile countermeasure pod, performed its first flight on the Gripen.

Saab describes the Gripen as a "swing-role aircraft", stating that it is capable of "instantly switching between roles at the push of a button". The human/machine interface changes when switching between roles, being optimized by the computer in response to new situations and threats. The Gripen is also equipped to use a number of different communications standards and systems, including SATURN secure radio, Link-16, ROVER, and satellite uplinks. Equipment for performing long range missions, such as an air-to-air refuelling probe and Onboard Oxygen Generation System (OBOGS), was integrated on the Gripen C/D.

Usability and maintenance

During the Cold War, the Swedish Armed Forceswere to be ready to defend against a possible invasion. This scenario required defensive force dispersal of combat aircraft in the Bas 90 system to maintain an air defence capacity. Thus, a key design goal during the Gripen's development was the ability to operate from snow-covered landing strips of only 500 metres (1,600 ft);[page needed]furthermore, a short-turnaround time of just ten minutes (attack mission preparations is double that time), during which a team composed of a technician and five conscripts would be able to re-arm, refuel, and perform routine inspections and servicing inside that time window before returning to flight for air-to-air missions. For air-to-ground missions this turnaround time using the same resource is slightly longer at twenty minutes.

During the design process, great priority was placed on facilitating and minimizing aircraft maintenance; in addition to a maintenance-friendly layout, many subsystems and components require little or no maintenance at all. Aircraft are fitted with a Health and Usage Monitoring System (HUMS) that monitors the performance of various systems, and provides information to technicians to assist in servicing it. Saab operates a continuous improvement programme; information from the HUMS and other systems can be submitted for analysis. According to Saab, the Gripen provides "50% lower operating costs than its best competitor".

A 2012 Jane's Aerospace and Defense Consultingstudy compared the operational costs of a number of modern combat aircraft, concluding that Gripen had the lowest cost per flight hour (CPFH) when fuel used, pre-flight preparation and repair, and scheduled airfield-level maintenance together with associated personnel costs were combined. The Gripen had an estimated CPFH of US$4,700 whereas the next lowest, the F-16 Block 40/50, had a 49% higher CPFH at $7,000.

Operational history

Sweden

File:Gripen - RIAT 2010 (5737186379).jpg
Two-seater JAS 39B Gripen in flight

The Swedish Air Force placed a total order for 204 Gripens[6] in three batches. The first delivery occurred on 8 June 1993, when 39102 was handed over to the Flygvapnet during a ceremony at Linköping;[7] the last of the first batch was handed over on 13 December 1996.Lua error: not enough memory.Lua error: not enough memory. The Air Force received its first Batch II example on 19 December 1996.Lua error: not enough memory.Lua error: not enough memory. Instead of the fixed-price agreement of Batch I, Batch II aircraft were paid as a "target price" concept: any cost underruns or overruns would be split between FMV and Saab.Lua error: not enough memory.Lua error: not enough memory.

The JAS 39 entered service with the Skaraborg Wing (F 7) on 1 November 1997.Lua error: not enough memory.Lua error: not enough memory.Lua error: not enough memory.Lua error: not enough memory. The final Batch III aircraft was delivered to FMV on 26 November 2008.[8] This was accomplished at 10% less than the agreed-upon price for the batch, putting the JAS 39C flyaway cost at under US$30 million.[8] This batch of Gripens was equipped for in-flight refuelling from specially equipped TP84s.Lua error: not enough memory.Lua error: not enough memory. In 2007, a programme was started to upgrade 31 of the air force's JAS 39A/B fighters to JAS 39C/Ds.[9] The SwAF had a combined 134 JAS 39s in service in January 2013.[10] In March 2015, the Swedish Air Force received its final JAS 39C.[11]

On 29 March 2011, the Swedish parliament approved the Swedish Air Force for a 3-month deployment to support the UN-mandated no-fly zone over Libya. Deployment of eight Gripens, ten pilots, and other personnel began on 2 April.[12] On 8 June 2011, the Swedish government announced an agreement to extend the deployment for five of the Gripens.[13] By October 2011, Gripens had flown more than 650 combat missions, almost 2,000 flight hours, and delivered approximately 2,000 reconnaissance reports to NATO.[14] Journalist Tim Hepher suggested that the Libyan operations might stimulate sales of the Gripen and other aircraft.[15]

In November 2012, Lieutenant Colonel Lars Helmrich of the Swedish Air Force testified to the Riksdag regarding the Gripen E. He stated that the then-current version of the Gripen would be outdated in air-to-air combat by 2020.[16] With 60 Gripens having been judged to be the minimum required to defend Swedish Airspace, the Swedish Air Force wanted to have 60–80 Gripens upgraded to the E/F standard by 2020.[17]

On 25 August 2012, the Swedish government announced that 40–60 JAS 39E/F Gripens were expected to be procured and in service by 2023.[18][19] On 11 December 2012, the Riksdag approved the purchase of 40 to 60 JAS 39E/Fs with an option to cancel if at least 20 aircraft are not ordered by other customers.[20] on 17 January 2013, the government approved the deal for 60 JAS 39Es to be delivered between 2018 and 2027.[21] On 3 March 2014, the Swedish defence minister stated that another 10 JAS 39Es might be ordered; this was later confirmed by the government.[22][23]

There are also plans to keep some of the Gripen C/D active after 2025. This was recommended by the Swedish defence advisory committee in 2019.[24]

In 2006, Swedish Gripen aircraft participated in Red Flag – Alaska, a multinational air combat exercise hosted by the United States Air Force. Gripen flew simulated combat sorties against F-16 Block 50, Eurofighter Typhoon and F-15C and scored ten kills, including a Eurofighter Typhoon and five F-16 Block 50s on day one of the exercises with no losses.[25] Three Swedish Gripen C also participated in a war game against five Royal Norwegian Air Force's F-16 Block 50 fighters in Sweden. Swedish Gripen C and Norwegian F-16 flew three combat sorties; Gripen C scored five kills in each sortie against Norwegian F-16, on the last sortie F-16 scored a kill against Gripen.[25]

In December 2022 Sweden ordered an upgrade package from Saab for a number of their Gripen C/D fighters. The upgrade includes new engines, a new radar and a new electronic warfare system. The order value is approximately SEK 3.5 billion and the contract period is 2023–2029.[26]

Index of the 204 Gripen delivered to Sweden
[27]
  • 98 Gripens operative C/D-version aircraft.
  • 32 Gripens disassembled or destroyed. JAS 39D required two 39A hulls to build.
  • 28 Gripens leased to the Czech Republic and Hungary.
  • 24 Gripens in hangar storage awaiting decommission.
  • 12 Gripens sold to Thailand.
  • 4 Gripens returned to Saab to be used as test aircraft.
  • 4 Gripens lost in accidents.
  • 2 Gripens donated to Flygvapenmuseum in Sweden and Royal Thai Air Force Museum in Thailand.

Czech Republic

When the Czech Republic became a NATO member in 1999, they needed to replace their existing Soviet-built MiG-21 fleet with aircraft compatible with NATO standards. In 2000, the Czech Republic began evaluating a number of aircraft, including the F-16, F/A-18, Mirage 2000, Eurofighter Typhoon and the Gripen. One major procurement condition was the industrial offset agreement, set at 150% of the expected purchase value.[28] In December 2001, having reportedly been swayed by Gripen International's generous financing and offset programme, the Czech government announced that the Gripen had been selected.Lua error: not enough memory.Lua error: not enough memory. In 2002, the deal was delayed until after parliamentary elections had taken place; alternative means of air defence were also studied, including leasing the aircraft.[29]

On 14 June 2004, it was announced that the Czech Republic was to lease 14 Gripens, modified to comply with NATO standards.[30] The agreement also included the training of Czech pilots and technicians in Sweden. The first six were delivered on 18 April 2005.[31] The lease was for an agreed period of 10 years at a cost of €780 million; the 14 ex-Swedish Air Force aircraft included 12 single-seaters and two JAS 39D two-seat trainers.[32][33] In September 2013, the Defence and Security Export Agency announced that a follow-up agreement with the Czech Republic had been completed to extend the lease by 14 years, until 2029; leased aircraft shall also undergo extensive modernization, including the adoption of new datalinks.[34] The lease also has an option of eventually acquiring the fighters outright.[33] In 2014, the lease was extended to 2027 and the Saab service contract was extended to 2026.[35][36]

In November 2014, Czech Air Force commander General Libor Štefánik proposed leasing a further six Gripens due to Russia's deteriorating relationship with the West;[37] a Ministry of Defence spokesperson stated that the notion was the commander's personal vision and fleet expansion was not on the agenda for years to come.[38] In 2015, the service decided to upgrade its fleet to the MS20 configuration.[39] The MS20 upgrade was completed in 2018.[40]

Hungary

File:Hungarian Air Force Saab JAS-39C Gripen Lofting-2.jpg
Hungarian Air Force Gripen during inverted flight, 2007. Note the painted false canopy

Following Hungary's membership of NATO in 1999, there were several proposals to achieve a NATO-compatible fighter force. Considerable attention went into studying second-hand aircraft options as well as modifying the nation's existing MiG-29 fleet. In 2001, Hungary received several offers of new and used aircraft from various nations, including Sweden, Belgium, Israel, Turkey, and the US.[41] Although the Hungarian government initially intended to procure the F-16, in November 2001 it was in the process of negotiating a 10-year lease contract for 12 Gripen aircraft, with an option to purchase the aircraft at the end of the lease period.[42]Lua error: not enough memory.Lua error: not enough memory.

As part of the procurement arrangements, Saab had offered an offset deal valued at 110 per cent of the cost of the 14 fighters.Lua error: not enough memory.Lua error: not enough memory. Initially, Hungary had planned to lease several Batch II aircraft; however, the inability to conduct aerial refuelling and weapons compatibility limitations had generated Hungarian misgivings.Lua error: not enough memory.Lua error: not enough memory. The contract was renegotiated and was signed on 2 February 2003 for a total of 14 Gripens, which had originally been A/B standard and had undergone an extensive upgrade process to the NATO-compatible C/D 'Export Gripen' standard.[43] The last aircraft deliveries took place in December 2007.[44]

While the Hungarian Air Force operates a total of 14 Gripen aircraft under lease,[33] in 2011, the country reportedly intended to purchase these aircraft outright.[45] However, in January 2012, the Hungarian and Swedish governments agreed to extend the lease period for a further ten years; according to Hungarian Defence Minister Csaba Hende, the agreement represented considerable cost savings.[46]

Two Gripens were lost in crashes in May and June 2015,[47][48][49] leaving 12 Gripens in operation.[50] From 2017, Hungary is back to operating 14 fighters.[51]

In August 2021, a contract was signed with Saab to modernize the Gripen fleet of the Hungarian Air Force. The radar will be upgraded to PS-05/Mk4 and the software will be upgraded to MS 20 Block 2 level. New weapons would be added to the arsenal of the Hungarian Gripens.[52] The IRIS-T missiles have been ordered in December 2021.[53]

South Africa

In 1999, South Africa signed a contract with BAe/Saab for the procurement of 26 Gripens (C/D standard) with minor modifications to meet their requirements.Lua error: not enough memory.Lua error: not enough memory. Deliveries to the South African Air Force commenced in April 2008.[54] By April 2011, 18 aircraft (nine two-seater aircraft and nine single-seaters) had been delivered.[55] While the establishment of a Gripen Fighter Weapon School at Overberg Air Force Base in South Africa had been under consideration, in July 2013 Saab ruled out the option due to a lack of local support for the initiative; Thailand is an alternative location being considered,[56] as well as the Čáslav Czech air base.[57]

Between April 2013 and December 2013, South African contractors held prime responsibility for maintenance work on the Gripen fleet as support contracts with Saab had expired; this arrangement led to fears that extended operations may not be possible due to a lack of proper maintenance.[58] In December 2013, Armscor awarded Saab a long-term support contract for the company to perform engineering, maintenance, and support services on all 26 Gripens through 2016.[59] On 13 March 2013, South African Defense Minister Nosiviwe Mapisa-Nqakula stated that "almost half of the SAAF Gripens" have been stored because of an insufficient budget to keep them flying.[60] In September 2013, the SAAF decided not to place a number of its Gripens in long-term storage; instead all 26 aircraft would be rotated between flying cycles and short-term storage.[61] Speaking in September 2013, Brigadier-General John Bayne testified that the Gripen met the SAAF's minimum requirements, as the country faced no military threats.[62]

Thailand

File:RTAF Jas 39 Gripen.jpg
Royal Thai Air Force Gripen

In 2007, Thailand's Parliament authorized the Royal Thai Air Force (RTAF) to spend up to 34 billion baht (US$1.1 billion) as part of an effort to replace Thailand's existing Northrop F-5 fleet.[63] In February 2008, the RTAF ordered six Gripens (two single-seat C-models and four two-seat D-models) from Saab; deliveries began in 2011.[64] Thailand ordered six more Gripen Cs in November 2010; deliveries began in 2013.[65] Thailand may eventually order as many as 40 Gripens.Lua error: not enough memory.Lua error: not enough memory. In 2010, Surat Thani Airbase was selected as the RTAF's main Gripen operating base.[66]

The first of the six aircraft were delivered on 22 February 2011.[67] Saab delivered three Gripens in April 2013, and three more in September 2013.[68] In September 2013, RTAF Marshal Prajin Jantong stated that Thailand is interested in purchasing six aircraft more in the near future, pending government approval.[63][69] Thai Supreme Commander General Thanasak Patimapragorn has stated that the RTAF intends for the Gripen's information systems to be integrated with Army and Navy systems. The armed forces were to officially inaugurate the Gripen Integrated Air Defence System during 2014.[63]

United Kingdom

The Empire Test Pilots' School (ETPS) in the United Kingdom has used the Gripen for advanced fast jet training of test pilots under a "wet lease" arrangement since 1999.[70] It operates a Gripen D aircraft.[71]

Brazil

In October 2008, Brazil selected three finalists for its F-X2 fighter programme: the Dassault Rafale B/C, the Boeing F/A-18E/F Super Hornet, and the Gripen NG.[72] The Brazilian Air Force initially planned to procure at least 36 and possibly up to 120 later,[73][74] to replace its Northrop F‐5EM and Dassault Mirage 2000C aircraft.[75] In February 2009, Saab submitted a tender for 36 Gripen NGs.[76] In early 2010, the Brazilian Air Force's final evaluation report reportedly placed the Gripen ahead, a decisive factor being lower unit cost and operational costs.[77] After delays due to financial constraints,[78][79] on 18 December 2013, President Dilma Rousseff announced the Gripen NG's selection.[75][80] Key factors were domestic manufacturing opportunities, full Transfer of Technology (ToT), participation in its development, and potential exports to Africa, Asia and Latin America;[81][82] Argentina and Ecuador are interested in procuring Gripens via Brazil,[83] and Mexico is considered an export target.Lua error: not enough memory.Lua error: not enough memory. Another factor was the distrust of the US due to the NSA surveillance scandal.[84] The Gripen is not immune to foreign pressure: the UK may use their 30% component percentage in the Gripen to veto an Argentinian sale over the Falkland Islands dispute; thus Argentina is considering other fighters instead.[85]

File:Brazilian Gripen F-39E (cropped).jpg
Brazil's first F-39E Gripen flies over Brasília in October 2020

On 24 October 2014, Brazil and Sweden signed a 39.3 billion SEK (US$5.44 bn, R$13 bn) contract for 28 Gripen E (single-seat version) and eight Gripen F (dual-seat version) fighters for delivery from 2019 to 2024 and maintained until 2050;[86][87] the Swedish government will provide a subsidized 25-year, 2.19% interest rate loan for the buy.[88] At least 15 aircraft are to be assembled in Brazil, Brazilian companies shall be involved in its production; Gripen Fs are to be delivered later. An almost US$1 billion price increase since selection is due to developments requested by Brazil,[89] such as the "Wide Area Display" (WAD), a panoramic 19 by 8 inches touchscreen display.[90][91] The compensation package is set at US$9 billion, or 1.7 times the order value.[92] The Brazilian Navy is interested in the Gripen Maritime to replace its Douglas A-4KU Skyhawk carrier-based fighters.[93][94] In 2015, Brazil and Sweden finalised the deal to develop the Gripen F, designated F-39 by Brazil.[95][96]

The first Brazilian F-39E Gripen flight took place on 26 August 2019, from Saab's facility in Linköping, Sweden.[97] It was handed over to the Brazilian Air Force on 10 September 2019 for flight testing.[98] The fighter arrived in Brazil on 20 September 2020,[99][100] and then was transported by land to Navegantes International Airport. On 24 September, it took off to the Embraer unit in Gavião Peixoto, in São Paulo state, for the test program for flight control systems, weapon integration, communication systems and others. The fighters will be part of the 1st Air Defense Group (1º GDA), based at the Anápolis Air Force Base.[101] The deliveries of operational fighters will begin in 2021.[102] According to Saab executive Eddy De La Motte, the first F-39F will be delivered in 2023.[103] In 2021, Brazil started F-39E supersonic flight tests at high altitude above 16,000 feet.[104] According to Saab executive Mikael Franzén, Brazil will start receiving production aircraft with IRST from November 2021.[105] The service has a requirement for 108 Gripens, to be delivered in three batches.[106]

File:Brazilian Saab Gripen E (cropped).jpg
Front view of a Brazilian Gripen during an exercise, October 2022

On 1 February 2022, the Brazilian Air Force commander Carlos de Almeida Baptista Júnior told newspaper Folha de S. Paulo that Brazil is in initial planning phase for negotiations with Saab for a new batch of 30 Gripen E/Fs,[107] "our capacity planning takes us today, by our employment assumptions, to 66 Gripens in operation"; this planning phase is expected to be finished by mid-2022.[107] The negotiation and Brazilian intention was confirmed by the Saab's chief executive Håkan Buskhe in February 2019.[108] The confirmation comes after media rumors that the service saw the Lockheed Martin F-35 as an ideal candidate to continue the modernization process in the coming years, after Gripen's recent failed bids in Finland and Switzerland, rumors that Baptista denied.[107][109] On 1 April 2022, Brazil received the first two series produced F-39E.[110] On 22 April 2022, the Brazilian Air Force announced the purchase of four more Gripens E/F for the first batch, totaling 40 aircraft, and the ongoing studies for a second batch.[111] On 23 May 2022, Commander Baptista Júnior, announced at a press conference, that the second batch will consist of 26 Gripens, priced around US$85 million per unit (US$2.2 billion), these new units plus the four ordered in April 2022, will be assembled at the Embraer factory in Gavião Peixoto.[112][113][114] On 1 August 2022, the Saab's chief executive Micael Johansson, confirmed that Brazil has initiated formal negotiations for 26 more Gripen fighters.[115]

Saab and Embraer inaugurated the production line for Gripen E in Brazil on 9 May 2023.[116]

Potential operators

Austria

Starting in the 1990s, the Gripen was one candidate to replace the Austrian Air Force's aging Saab 35 Drakens; the Eurofighter Typhoon was selected in 2003.[117] During the mid-2010s, Austria started considering replacing their Typhoons with Gripens due to obsolescence and cost, as they are all Tranche 1 and need upgrades to be retained.[118][119]

Botswana

In 2014, Saab opened an office in Botswana.[120][121] The country is interested in buying eight surplus Gripen C/Ds, with possible extension to 16, to replace the Botswana Defence Force Air Wing's (BDF) 14 ex-Royal Canadian Air Force CF-5 fighters used since 1996.[122][123] BDF officials reportedly believe the Gripen acquisition is a done deal.[124][125]

Colombia

Saab has offered 15[126] Gripen C/D or E/F[119] to Colombia, with possible deliveries during 2018–21, depending on variant selected.[127][71]

Philippines

In September 2016, Saab announced its intention to open an office in Manila to support its campaign to sell the Gripen to fill the Philippine Air Force's requirement for 12 multirole fighters; Saab also intends to offer ground infrastructure, integrated C2 systems and datalinks, similar to the capabilities of the Royal Thai Air Force.[128][129] In 2018, Saab renewed its sales push.[130] The Department of National Defense is reportedly more likely to buy six Gripen C/D MS20 over the US offer of F-16V Block 70/72.[131][132] According to Swedish newspaper Aftonbladet, Swedish ISP Exportkontrollrådet (Export Control Council) ruled in November 2022 to approve export to the Philippines.[133][134] They also raise the option of providing leased JAS-39 Gripen as a counter-offer to the F-16V offer of the United States.[135][136] In June 2023, The Philippines and Sweden signed a memorandum of understanding (MOU) during the Shangri-La Dialogue in Singapore, paving the way for a potential agreement that would see Sweden supplying 12 Gripen C/D MS20 multirole fighter aircraft to the Philippine Air Force (PAF). The MOU on defence materiel cooperation was signed by Acting Defence Secretary Carlito Galvez Jr. and Swedish Defence Minister Pål Jonson.[137][138][139]

Ukraine

In July 2022, the Minister of Defence Oleksii Reznikov announced the JAS 39 Gripen as a candidate aircraft for the Ukrainian Air Force.[140][141] In August 2023 after visiting Sweden's Prime Minister Ulf Kristersson Ukraine's President Volodymyr Zelenskyy said that "Ukrainian pilots had already begun training on the planes".[142]

Others

Other countries that have expressed interest in Gripen include:

Lua error: not enough memory.

Saab's head of exports Eddy de La Motte has stated in 2013 that Gripen's chances have improved as nations waver in their commitments to the F-35.[151] In September 2013, Saab's CEO Håkan Buskhe said he envisioned Gripen sales to reach 400 or 450 aircraft.[152]

Failed bids

Bulgaria

Lua error: not enough memory.

In response to the Bulgarian Air Force's interest in the Gripen, the Gerdzhikov caretaker cabinet announced in April 2017 the fighter's section by a state commission and plans for an initial batch of eight Gripens at up to 1.5 billion BGN (ca. 745 million euro), to be delivered around 2018–2020, along with a second batch of eight later. Competing bids were used USAF F-16A/Bs to be modernised to MLU standard by the Portuguese OGMA (similar to Bulgaria's neighbour Romania) and used Italian Tranche 1 Eurofighter Typhoons, with the US/Portuguese offer finishing second and the Italian offer third.[153] According to the deputy prime minister and minister of defence Stefan Yanev, the Gripen's selection was primarily due to Saab's offer of favourable financial terms, such as a lease option and offset agreements, accounting for about one billion BGN for the aircraft alone ($834 million),[154][155] while the US/Portuguese bid accounted a price of about one and a half billion BGN for the aircraft alone. The second-place offer was retained as a back-up option if negotiations with Saab failed; program finances were budgeted through to 2017. It would replace both the MiG-29 fighters of Graf Ignatievo Air Base and the Su-25 attack aircraft of Bezmer Air Base, as well as the already retired Su-22 reconnaissance aircraft.[156][157]

In October 2018, potential suppliers responded to a renewed tender, consisting of new F-16V Vipers from Lockheed Martin, new Boeing F/A-18E/F Super Hornet|F/A-18E/F Super Hornets from Boeing, used Eurofighter Typhoons from Italy and used Gripen C/Ds from Sweden. France, Germany, Israel and Portugal did not respond to requests for used Eurofighter Typhoons and F-16 variants.[158] In December 2018, Saab submitted an improved offer to supply 10 new Gripen C/Ds instead of the previously proposed 8.[159] However, in December 2018, the Bulgarian Ministry of Defence selected the F-16V offer as the preferred option, and recommended talks with the US.[160] On 3 June 2019, the US State Department approved the possible sale of 8 F-16Vs to Bulgaria at an estimate cost of $1.67 billion.[161] On 10 July 2019, Bulgaria approved the acquisition of eight F-16V Block 70/72s for US$1.25bn.[162] The deal was vetoed by the Bulgarian President, Rumen Radev on 23 July 2019, citing the need for a broader consensus, returning it to parliament.[163] On 26 July 2019, parliament again approved the deal, overruling the veto, and was approved by Radev.[164] In April 2020, Lockheed Martin was contracted by the US government to produce Bulgaria's F-16Vs, completion is expected in 2027.[165][166]

In September 2022, there were reports that Bulgaria had been given an offer from the Swedish government of procuring 10 Gripen C/D's from Sweden for delivery within two years of time. The "24chasa" newspaper referenced a letter from Bulgarian Acting Minister of Defense Dimitar Stojanov to his Swedish counterpart Peter Hultqvist dated 30th of September 2022. Dimitar Stojanov allegedly wrote in the letter that they would like to receive a more detailed offer, including an option of a leasing arrangement, and he invited Swedish representatives to visit Sofia to discuss further details. Peter Hultqvist's office confirmed to the Swedish news agency TT that it concerned a potential procurement inquiry. At the time Saab offered no comments on the issue. The Swedish Defence Materiel Administration, FMV, claimed that they were aware of reports about Bulgarian interest but they had not received any formal inquiry so they refrained from commenting.[167][168]


Canada

Lua error: not enough memory.

Canada is a level 3 industrial partner in the Lockheed Martin F-35 Lightning II development program, however an open fighter competition was launched in December 2017.[169] The Royal Canadian Air Force announced in February 2018 that Saab was a contestant along with the F-35.[170][171] The competition is very dependent on industrial benefits for Canadian companies; in May 2019, Saab offered to build Gripens in Canada akin to the Brazilian arrangement.[172]

In June 2019, Saab stated it was ready to offer 88 Gripen Es to Canada, in addition to full transfer of technology, Saab stated that they could offer the integration of American and other non-Saab equipment so that the aircraft is interoperable with the US military. Saab also stated the Gripen E was built for arctic conditions.[173] In January 2021, Saab has offered to build two aerospace centers in Canada as part of the technology transfer proposal.[174][175] On 1 December 2021, the Canadian government confirmed that the Super Hornet did not meet its requirements and reduced the competitors to the F-35 and the Gripen.[176][177]

In late March 2022, the Canadian government announced its intention to negotiate a contract to purchase the F-35.[178] By early December 2022, defence sources revealed an initial funding request for 16 F-35s had been approved by the Treasury Board of Canada, though Saab claimed their offer remained eligible for selection.[179] On 9 January 2023, the government announced the signing of a final contract to procure 88 F-35s, effectively ending the Gripen's chance for selection.[180]

Croatia

Lua error: not enough memory. On 24 October 2015, Sweden announced its Gripen C/D bid for Croatia's fighter replacement requirement, following a request for information from the Croatian Ministry of Defence in June for between 8 and 12 new-build aircraft to replace Croatia's fleet of MiG-21bis aircraft. The LTDP would run from 2015 to 2024 and was scheduled to have funding available for a replacement aircraft in 2019.[181] On 29 March 2018, the Croatian government chose Israel's bid of 12 F-16C/D Barak 2020 fighters over the Gripen;[182] this sale was halted in January 2019 after the US failed to approve Israel's sale of the modified aircraft to Croatia.[183] Sweden submitted another response in September 2020 following a second RFP identifying Croatia's requirements issued in the spring 2020 for twelve fighters.[184] The second RFP opened up the competition to both new and secondhand aircraft.[185] On 28 May 2021, the Prime Minister of Croatia Andrej Plenković announced that the Croatian Government will buy 12 used French Rafale F3R fighters for the Croatian Air Force.[186][187]

Denmark

Lua error: not enough memory. In 2007, Denmark signed a Memorandum of Understanding between the Defence Ministers of Sweden and Denmark to evaluate the Gripen as a replacement for Denmark's fleet of 48 F-16s. Denmark also requested the development of Gripen variants featuring more powerful engines, larger payloads, longer range, and additional avionics; this request contributed to Saab's decision to proceed with the JAS E/F's development.[188][189] Denmark repeatedly delayed the purchase decision;[190] in 2013, Saab indicated that the Gripen was one of four contenders for the Danish purchase, alongside Boeing's Super Hornet, Lockheed Martin's F-35 Lightning II, and the Eurofighter Typhoon.[191] Denmark is a level-3 partner in the JSF programme, and has already invested US$200 million. The final selection was to be in mid-2015 where an order for 24 to 30 fighters was expected.[192] The Swedish government announced on 21 July 2014 the Gripen's withdrawal from the Danish competition, having chosen not to respond to the invitation to tender.[193]

On 9 June 2016, the Danish defence committee agreed to purchase 27 F-35As to replace its F-16s for US$3 billion.[194][195] In May 2019, Danish Minister of Defence Claus Hjort Frederiksen stated that Denmark is considering stationing fighters in Greenland to counter Russia's expanding military presence in the Arctic region. Frederiksen said that Greenland's air defense would need at least four fighters, in turn requiring Denmark to make an additional purchase.[196][197] In January 2020, Lockheed Martin announced that assembly had begun on L-001, the first of 27 F-35As destined for Denmark.[198] According to DR (Danish public-service) the US spied on other contenders, Danish ministries, and the defense industry to gain an advantage in the procurement process.[199]

Finland

Lua error: not enough memory. The Gripen's first export bid was to Finland, where it competed against F-16, F/A-18, MiG-29 and Mirage 2000 to replace the Finnish Air Force's J 35 Draken and MiG-21 fleet. In May 1992, McDonnell Douglas F/A-18C/D was announced as a winner on performance and cost grounds.[200] The Finnish Minister of Defence, Elisabeth Rehn, stated that delays in Gripen's development schedule had hurt its chances in the competition.[201]

In June 2015, a working group set up by the Finnish MoD proposed starting a program to replace the Finnish Air Force's F/A-18 Hornet fleet; it recognized five potential types: Boeing F/A-18E/F Super Hornet, Dassault Rafale, Eurofighter Typhoon, Lockheed Martin F-35, and Gripen.[202] In December 2015, the Finnish MoD sent a letter to Britain, France, Sweden and the US, informing them that the HX Fighter Program had launched to buy multi-role fighters by around 2025 and mentioned the Gripen. A Request for Information (RFI) for the program was sent in April 2016,[203] and five responses were received by November 2016; an official request for quotations was sent to all five responders in 2018.[204] On 29 January 2020, the Gripen E prototype 39–10 landed at Tampere–Pirkkala Airport to participate in HX Challenge, the HX Fight Program's flight evaluations. It was later followed by Gripen NG demonstrator 39–7 (sensor testbed), while a GlobalEye participated in the trials from Linköping in Sweden.[205][206]

Saab announced the successful completion of planned tests to demonstrate both the Gripen and GlobalEye. On 31 January 2020 Saab submitted a revised offer in response to the revised Request for Quotation for the HX programme[207] and follow-on BAFO activity anticipated to continue through April 2021.[208] Saab submitted its Best and Final Offer (BAFO) for 64 JAS-39Es, two GlobalEye AEW&C, weapons package, and an option for JAS-39Fs. Over 20% of the proposal price relating to Gripen was for weapons such as Meteor, IRIS-T, KEPD 350, SPEAR, EAJP (Electronic Attack Jammer Pod), and LADM (Lightweight Air-launched Decoy Missile).[209][210][211][212][213] On 5 December 2021, the Finnish newspaper Iltalehti reported that several sources stated the Finnish Defense Forces recommendation for the F-35 as Finland's next fighter and pointed to its capability and expected long lifespan as key reasons.[214][215] On 10 December 2021, the F-35's selection was officially confirmed by the Finnish government.[216]

India

File:SAAB Gripen ready for take off at Aero India 2011.jpg
Saab Gripen at Aero India 2011, Yelahanka Air Force Base, Bangalore

Lua error: not enough memory.

The Gripen was a contender for the Indian MRCA competition for 126 multirole combat aircraft.[217] In April 2008, Gripen International offered the Next Generation Gripen for India's tender[218] and opened an office in New Delhi to support its efforts in the Indian market.[219] On 4 February 2009, Saab announced that it had partnered with India's Tata Group to develop the Gripen to fit India's needs.[220] The Indian Air Force (IAF) conducted extensive evaluations of the Gripen's flight performance, logistics capability, weapons systems, advanced sensors and weapons firing.[221] In April 2011, the IAF rejected the bid in favour of the Eurofighter Typhoon and the Dassault Rafale.[222] Allegedly, IAF officials, while happy with the Gripen NG's improved capabilities, noted its high reliance on US-supplied hardware, such as electronics, weaponry and the GE F414 engine, as a factor that may hamper exports.[223]

In 2015, after the Rafale order was cut back to just 36 aircraft, Saab indicated a willingness to set up joint production of the Gripen in India.[224] In October 2016, Saab, among other manufacturers, reportedly received an informal request-for-information query, resuming a new competition for a single-engine fighter to replace the IAF's Soviet-built MiG-21 and MiG-27 fleets; Saab had already submitted an unsolicited bid.[225] In November 2017, Saab pledged full Gripen E technology transfer to India if it is awarded the contract.[226] It is competing with six other types in a fresh tender often referred to as MMRCA 2.0 in the media, for the procurement of 114 multi-role combat aircraft.[227]

On 23 September 2016, Indian Defence Minister Manohar Parrikar and his French counterpart Jean-Yves Le Drian signed the contract for the purchase of 36 off-the-shelf Rafales in a deal worth €7.8 billion with an option for 18 more at the same inflation-adjusted price.[228] The deliveries were to begin in 2019 and complete by 2022.[229] The deal includes weapons and spares; the aircraft will be equipped with Meteor missiles.[230][231] Indian Air Force was handed over the first Rafale in October 2019.[232] The first batch of 5 fighters arrived in India on 29 July 2020. As of January 2021, a total of 11 fighters have arrived in India from France.[233]

Indonesia

In July 2016, Saab Indonesia confirmed having submitted a proposal earlier in the year in response to an Indonesian Air Force requirement. The proposal included the initial acquisition of 16 Gripen C/D for US$1.5 billion, to replace Northrop F-5E Tiger II in service with the Indonesian Air Force since the 1980s. Saab have expressed the intention for the bid to "100%" comply with Indonesia's Defence Industry Law 2012 (or, Law Number 16),[234] which requires foreign contractors to work with local industry, collaborating on production and sharing technology. They also indicated that the bid could replace the C/D versions with the E-version, if Indonesia were willing to accept longer delivery time. Competing aircraft for the requirement include the F-16V, Su-35, Dassault Rafale and Eurofighter Typhoon.[235] As of 2023, Indonesian Air Force purchase 42 Rafales[236] and 12 Mirage 2000s from Qatar,[237]

Netherlands

Lua error: not enough memory. In July 2008, the Netherlands announced it would evaluate Gripen NG together with four other competitors;[238] in response, Saab offered 85 aircraft to the Royal Netherlands Air Force in August 2008.[239] On 18 December 2008, it was reported that the Netherlands had evaluated the F-35 as having a better performance-price relation than the Gripen NG.[240][241] On 13 January 2009, NRC Handelsblad claimed that, according to Swedish sources, Saab had offered to deliver 85 Gripens for €4.8 billion to the Dutch Air Force, about 1 billion euro cheaper than budgeted for the F-35.[242]

Norway

Lua error: not enough memory. On 18 January 2008, the Norwegian Ministry of Defence issued a Request for Binding Information (RBI) to the Swedish Defence Material Administration,[243] who issued an offer for 48 Gripens in April 2008.[244][245] On 20 November 2008, the selection of the F-35 Lightning II for the Royal Norwegian Air Force was announced, stating that it was the only candidate to meet all operational requirements;[246] media reports claimed the requirements were tilted in the F-35's favour.[247] Saab and Sweden's defence minister Sten Tolgfors stated that Norway's cost calculations were flawed;[248] the offer being for 48 Gripens over 20 years, but Norway had extrapolated it to operating 57 aircraft over 30 years, thus doubling the cost; cost projections also failed to relate to the Gripen's operational costs. Norway also calculated greater attrition losses than what Sweden considered reasonable. According to Tolgfors, Norway's decision complicated further export deals.[249][250] In December 2010, leaked United States diplomatic cables revealed that the United States deliberately delayed Sweden's request for access to an AESA radar until after Norway's selection, and that Norway's consideration of the Gripen "was just a show" and that Norway had purchased the F-35 due to "high-level political pressure" from the US.[251]

Poland

Lua error: not enough memory. The Gripen C/D was a contender for 48 multirole fighters for the Polish Air Force started in 2001. On 27 December 2002, the Polish Defence Minister announced the F-16C/D Block 50/52+'s selection.[252] According to Stephen Larrabee, the selection was heavily influenced by Lockheed Martin's lucrative offset agreement (totaling $3.5 billion and 170% offset against Gripen International's €3.2 billion with 146% offset) and by a political emphasis on Poland's strategic relationship with the US and NATO.Lua error: not enough memory.Lua error: not enough memory. Both Gripen International and Dassault Aviation (who offered the Mirage 2000-5 Mk 2) described the decision as political.[253] According to a former Polish military defence vice-minister, the JAS 39 offer was better and included research participation proposals.[254]

In 2014, Poland planned to purchase 64 multirole combat aircraft from 2021 as part of its modernisation plans to replace the ageing fleet of Sukhoi Su-22M4 'Fitter-K' ground attack aircraft and Mikoyan MiG-29 'Fulcrum' fighters.[255][256] On 23 November 2017, the Armament Inspectorate announced the acquisition process's start.[257] By 22 December 2017, five entities had expressed interest in the procurement, referred to as Harpia (harpy eagle), including Saab AB with Gripen NG, Lockheed Martin with F-35, Boeing with F/A-18, Leonardo with Eurofighter Typhoon and Fights-On Logistics with second hand F-16s.[258] In May 2019, the Polish Defense Ministry formally requested to buy 32 F-35A for $4 billion with delivery from 2023 to 2026 with an option for 32 more from 2027.[259]

Slovakia

On 30 August 2014, the Czech Republic, Slovakia and Sweden signed a letter of intent agreeing to co-operate on using the Gripen, which might lead to its acquisition by the Slovak Air Force. The letter of intent laid the foundation for bilateral co-operation around a common airspace surveillance of Slovakia and the Czech Republic. Slovakia sought to replace its MiG-29 fighters and the Gripen has been reported as the aircraft of choice, although the requirement would go to open competition. They may seek to lease fighters rather than buy, as did neighbouring Hungary and the Czech Republic.[260]

In February 2018, the Slovak Ministry of Defence announced the launch of a new study to examine bids from the US and Swedish governments for the F-16V Viper and the Gripen to replace Slovakian MiG-29s.[261] On 11 July 2018, the Slovakian Defense ministry announced that it will purchase 14 F-16V Block 70/72s instead of Gripen Cs.[262] The F-16V package includes ammunition, training and logistics for a total of €1.589 billion (US$1.85 billion). Political opposition, among them former Defence Minister Ľubomír Galko, expressed criticism that the deal lacked transparency.[263] On 12 December 2018, Slovakia signed a contract to acquire 14 F-16 Block 70/72. All are to be delivered by the end of 2023.[264]

Switzerland

Lua error: not enough memory. In January 2008, the Swiss Defence Material Administration invited Gripen International to bid to replace the nation's F-5 fleet.[265] Saab responded with an initial proposal on 2 July 2008;[266] other contenders were the Dassault Rafale and Eurofighter Typhoon.[267] On 30 November 2011, the Swiss government announced its decision to buy 22 Gripen NG aircraft for 3.1 billion Swiss francs.[268][269] In 2012, a confidential report of the Swiss Air Force's 2009 tests of the three contenders was leaked, which had rated the Gripen as performing substantially below both the Rafale and the Eurofighter. The Gripen was assessed as satisfactory for reconnaissance but unsatisfactory for combat air patrol and strike missions.[270][271] The JAS 39C/D was evaluated, while the Gripen NG was bid.[272] The parliamentary security commission found that the Gripen offered the most risks, but voted to go ahead as it was the cheapest option.[273] The Gripen was rated satisfactory for operational suitability and overall was rated satisfactory.[274]

On 25 August 2012, the plan to order was confirmed by both Swedish and Swiss authorities.[275] Deliveries were expected to run from 2018 to 2021 at a fixed price of CHF 3.126 billion (US$3.27 billion) including development costs, mission planning systems, initial spares and support, training, and certification; the Swedish government also guaranteed the price, performance and operational suitability. Eight JAS 39Cs and three JAS 39Ds were to be leased from 2016 to 2020 to train Swiss pilots and allow the F-5s to be retired.[276][277] In 2013, Saab moved to increase Swiss industry offsets above 100% of the deal value after the Swiss parliament's upper house voted down the deal's financing.[278] On 27 August 2013, the National Council's Security Commission approved the purchase,[279] followed by the lower and upper houses of the parliament's approval in September 2013.[280][281] Elements of the left and center of the political spectrum often criticized the Gripen as unnecessary and too expensive. On 18 May 2014, 53.4% of Swiss voters voted against the plan in a national referendum.[282][283] Reportedly, objectors questioned the role of fighter aircraft in general, and the relevance of alternatives such as UAVs, surface-to-air missiles, or cyberwarfare capabilities.[284]

In 2015, Switzerland was set to relaunch the F-5E/F, and now also F/A-18C/D, replacement programme;[285][286] the Gripen was again considered the favourite.[287] In March 2018, Swiss officials named contenders in its US$Lua error: not enough memory. Air 2030 programme that includes not only combat aircraft but also ground-based air defense systems: The Gripen, Dassault Rafale, Eurofighter Typhoon, Boeing F/A-18E/F Super Hornet and Lockheed Martin F-35.[288][289] In January 2019, Saab submitted a formal proposal for 30 to 40 Gripen Es to Armasuisse.[290] It was due to perform evaluation flights for Swiss personnel at Payerne Air Base in June 2019.[291] However, in June 2019, Saab did not participate at Payerne with the Gripen E because it was not considered ready to perform all tests.[292][293]

Others

Sweden withdrew from the Belgian F-16 replacement competition due to foreign policy incompatibility.[294]

Oman ended up procuring the Eurofighter Typhoon.[295][296]

Pakistan was interested in the Gripen C/D, but it was denied by Sweden in 2004.[297]

Romania decided to acquire used F-16s instead.[298]

The Gripen was one of the aircraft evaluated by the Chilean Air Force in 1999. Chile finally selected the F-16 over the Gripen, Boeing F/A-18, and Dassault Mirage 2000–5.[299]

There were plans to begin licensed production of the Gripen in Lviv, Ukraine. However, these plans have stalled since 2014.[300]

Variants

JAS 39 Gripen taxiing in after display, Farnborough 2006
  • Gripen A, or JAS 39A: initial single seat version that entered service with the Swedish Air Force in 1996. A number have been upgraded to the C standard or been converted to 39D at a 2:1 ratio.[301]
  • Gripen B, or JAS 39B: two-seat version of the 39A for training, specialised missions and type conversion.[302] To fit the second crew member and life support systems, the internal cannon and an internal fuel tank were removed and the airframe lengthened 0.66 m (2 ft 2 in).Lua error: not enough memory.Lua error: not enough memory.
  • Gripen C, or JAS 39C: NATO-compatible single seat version with extended capabilities in terms of armament, electronics, etc. Can be refuelled in flight.[303] Variant was first deliveried on 6 September 2002.[1]
File:Royal Thai Air Force Jas-39 D.jpg
Royal Thai Air Force JAS-39D, 2016
  • Gripen D, or JAS 39D: two-seat version of the JAS 39C, with similar alterations as the JAS 39B.Lua error: not enough memory.Lua error: not enough memory.
  • Gripen NG: Follow-on the Gripen Demo technology demonstrator.[304] Changes from the JAS 39C include the more powerful F414G engine, Raven ES-05 AESA radar, increased fuel capacity and payload, and two additional hardpoints.[305][306] These improvements reportedly increased costs to an estimated 24,000 Swiss Francs (US$27,000) per hour,[307] and the flyaway cost to 100 million Swiss Francs (US$113M).[308]
  • Gripen E, or JAS 39E: single-seat production version developed from the Gripen NG program, priced at US$85 million per unit.[309] Sweden and Brazil have ordered the variant.[21][20][75] Brazil's designation for this variant is F-39E.[96][310]
  • Gripen F, or JAS 39F: two-seat version of the JAS 39E. Eight ordered by Brazil,[86] to be developed locally and assembled in Gavião Peixoto, Brazil;[311] planned for pilot training and combat, being optimized for back seat air battle management, with jamming, information warfare and network attack, besides weapon system officer and electronic warfare roles.[312] Brazil's designation for the variant is F-39F.[96][310]

Proposals

  • Gripen Aggressor: 'red team' weaponless variant of the Gripen C & possibly D[313][314] intended for the UK's Air Support to Defence Operational Training (ASDOT) requirement, and part of the US Air Force's adversary air (AdAir) opportunity.[315]
  • Gripen Maritime: proposed carrier-based version based on the Gripen E.[316][317] As of 2011Lua error: not enough memory., its development was underway.[318] As of 2013Lua error: not enough memory., Brazil and India[94] were interested. This variant has also been named Sea Gripen.[319] In July 2017, the Brazilian Navy began studying the Gripen Maritime for naval purposes and is looking to replace its fleet of Douglas A-4 Skyhawk aircraft.[320]
  • Gripen UCAV: proposed unmanned combat aerial vehicle (UCAV) variant of the Gripen E.[321]
  • Gripen EA: proposed electronic warfare (EW) or Electronic Attack variant of the Gripen F.Lua error: not enough memory.Lua error: not enough memory.

Operators

Lua error: not enough memory.

File:3 x Saab JAS-39 Gripen of the Czech Air Force in flight (1).jpg
Three Saab JAS 39C Gripens of the Czech Air Force

There were 158 Gripens in service as of 2016Lua error: not enough memory..[322]

 Brazil
The Brazilian Air Force operates 7 F-39Es,[323][324][325] with another 33 Gripens E/F on order to be delivered from 2019 to 2026.[111][87] 26 JAS E/Fs planned.[112][113][114]
'Jaguar' Squadron of the 1st Air Defense Group
 Czech Republic
The Czech Air Force has 14 Gripens on lease; these include 12 single-seat C models and two two-seat D models, in operation as of 2016Lua error: not enough memory..[322]
211. taktická letka (211th Tactical Squadron)
 Hungary
The Hungarian Air Force operates 14 Gripens (12 C-models and 2 D-models) on a lease-and-buy arrangement as of February 2017Lua error: not enough memory..[51]
'Puma' Harcászati Repülőszázad ('Puma' Tactical Fighter Squadron at 59th Air Base)
 South Africa
The South African Air Force (SAAF) ordered 26 aircraft; 17 single-seat C-models and nine two-seat D-models.[326] The first delivery, a two-seater, took place on 30 April 2008.[54] It had 17 Cs and nine Ds in service as of 2016Lua error: not enough memory..[322]
No. 2 Squadron
 Sweden
The Swedish Air Force operates 74 JAS 39Cs, 24 Ds and 2 Es,[323] ordered 60 Es as of 2016 with 10 more aircraft planned to be ordered.[86][322] It originally ordered 204 aircraft, including 28 two-seaters. Sweden leases 28 to the Czech and Hungarian Air Forces.[327]
 Thailand
The Royal Thai Air Force had eight JAS 39Cs and four JAS 39Ds in use as of 2016Lua error: not enough memory..[322] 1 crashed, leaving a total of 11 Gripens in their inventory. In October 2013, the Thai government announced its intention to purchase another six Gripens.[69]
701 Fighter Squadron, Wing 7
 United Kingdom
The Empire Test Pilots' School operates Gripens for training. ETPS instructor pilots and students undergo simulator training with the Swedish Air Force, and go on to fly the two-seater Gripen at Saab in Linköping, in two training campaigns per year (Spring and Autumn). The agreement was renewed in 2008.[328]

Aircraft on display

File:F 7 Såtenäs 10.jpg
Saab JAS 39 Gripen on display at the Skaraborg Wing.

Accidents and incidents

Lua error: not enough memory.

As of January 2017Lua error: not enough memory., Gripen aircraft have been involved in at least 10 incidents, including nine hull-loss accidents, with one loss of life.[331]

The first two crashes, in 1989 and 1993 respectively, occurred during public displays of the Gripen and resulted in considerable negative media reports. The first crash was filmed by a Sveriges Television news crew and led to critics calling for development to be cancelled.Lua error: not enough memory.Lua error: not enough memory. The second crash occurred in an empty area on the island of Långholmen during the 1993 Stockholm Water Festival with tens of thousands of spectators present. The decision to display the Gripen over large crowds was publicly criticized, and was compared to the 1989 crash.Lua error: not enough memory.Lua error: not enough memory.[332] Both the 1989 and 1993 crashes were related to flight control software issuesLua error: not enough memory.Lua error: not enough memory. and pilot-induced oscillation; the flight control system was corrected by 1995.[333] The first and only fatal crash occurred on 14 January 2017 at Hat Yai International Airport, Thailand, during an airshow for Thai Children's Day; the pilot did not survive.[334] The last crash occurred on 21 August 2018 at Kallinge Airport near the southern Swedish town of Ronneby; the pilot was able to successfully eject from the aircraft.[335][336] The following investigation by the Swedish Accident Investigation Authority led to the conclusion by DNA analysis of the engine that it collided with Phalacrocorax carbo birds at a speed of Lua error: not enough memory. and height Lua error: not enough memory..[337][338]

Specifications

JAS 39C/D

File:Saab JAS 39 Gripen 3-view.svg
Saab JAS 39 Gripen 3-view drawing
File:Gripen 5.jpg
Gripen engine nozzle

Data from Saab Gripen,Lua error: not enough memory.Lua error: not enough memory.Lua error: not enough memory.Lua error: not enough memory. Saab,[339][340] Aviation Week[341]

General characteristics

  • Crew: 1 JAS 39C / 2 JAS 39D
  • Length: Lua error: not enough memory. JAS 39C
Lua error: not enough memory. JAS 39D
  • Wingspan: Lua error: not enough memory.
  • Height: Lua error: not enough memory.
  • Wing area: Lua error: not enough memory.
  • Empty weight: Lua error: not enough memory.
  • Max takeoff weight: Lua error: not enough memory.
  • Fuel capacity: Lua error: not enough memory. (2340 kg) (internal); Lua error: not enough memory. (2730 kg) (external)[342][343]
  • Payload: Lua error: not enough memory.[342][343]
  • Powerplant: 1 × Volvo RM12 afterburning turbofan engine, Lua error: not enough memory. thrust dry, Lua error: not enough memory. with afterburner

Performance

  • Maximum speed: Mach 2 (Lua error: not enough memory.) at 15240m
    • Lua error: not enough memory. at sea level[342]
  • Combat range: Lua error: not enough memory. (Lua error: not enough memory., Lua error: not enough memory.)
  • Ferry range: Lua error: not enough memory. (Lua error: not enough memory., Lua error: not enough memory.)
  • Service ceiling: Lua error: not enough memory.
  • g limits: +9/−3 (+12 if needed)[344]
  • Wing loading: Lua error: not enough memory.
  • Thrust/weight: 0.97
  • Takeoff distance: Lua error: not enough memory.[342][343]
  • Landing distance: Lua error: not enough memory.[342][343]

Armament

Avionics

  • Radar: PS-05/A Pulse-Doppler
  • Cobra helmet mounted display (HMD)[345][346]Lua error: not enough memory.

JAS 39E/F

Data from Saab Gripen,Lua error: not enough memory.Lua error: not enough memory.Lua error: not enough memory.Lua error: not enough memory. Saab,[347][348][349] and Aviation Week.[341]

General characteristics

  • Crew: 1 JAS 39E / 2 JAS 39F
  • Length: Lua error: not enough memory. JAS 39E
Lua error: not enough memory. JAS 39F
  • Wingspan: Lua error: not enough memory.
  • Height: Lua error: not enough memory.
  • Wing area: Lua error: not enough memory.
  • Empty weight: Lua error: not enough memory.
  • Max takeoff weight: Lua error: not enough memory.
  • Fuel capacity: Lua error: not enough memory. (3400 kg) (internal); 4535 L (3537 kg) External with 3 drop tanks (2x1700 L + 1x1135 L)
  • Payload: Lua error: not enough memory.[350]
  • Powerplant: 1 × General Electric F414-GE-39E (RM16) afterburning turbofan engine, Lua error: not enough memory. thrust dry, Lua error: not enough memory. with afterburner

Performance

  • Maximum speed: Lua error: not enough memory. (Lua error: not enough memory., Lua error: not enough memory.) at 15240 m
  • Maximum speed: Mach 2
  • Combat range: Lua error: not enough memory. (Lua error: not enough memory., Lua error: not enough memory.)
  • Ferry range: Lua error: not enough memory. (Lua error: not enough memory., Lua error: not enough memory.)
  • Service ceiling: Lua error: not enough memory.
  • g limits: +9/−3
  • Wing loading: Lua error: not enough memory.
  • Thrust/weight: 1.04
  • Takeoff distance: Lua error: not enough memory.
  • Landing distance: Lua error: not enough memory.

Armament

Avionics

See also

Lua error: not enough memory.

Aircraft of comparable role, configuration, and era

Related lists

Notes

  1. Literally "the Griffin", as the names of Swedish combat aircraft, like Viggen or Draken, are in the definite form while non-combat aircraft like Saab Safir are in indefinite form.
  2. Comprising 204 (30 Batch I, 110 Batch II, 64 Batch III) Gripens built and delivered to Sweden, 1 to Brazil, 14 to Czech Republic, 14 to Hungary, 26 to South Africa, and 12 to Thailand. This figure does not include those of the Empire Test Pilots School, but does include the transfers from the Swedish Airforce to foreign clients.[3]

Lua error: not enough memory.

References

Citations

  1. 1.0 1.1 1.2 1.3 Lua error: not enough memory.
  2. Lua error: not enough memory.
  3. Lua error: not enough memory.
  4. Lua error: not enough memory.
  5. Lua error: not enough memory.
  6. Lua error: not enough memory.
  7. Lua error: not enough memory.
  8. 8.0 8.1 Lua error: not enough memory.
  9. Lua error: not enough memory.
  10. Lua error: not enough memory.
  11. Lua error: not enough memory.
  12. Lua error: not enough memory.
  13. Lua error: not enough memory.
  14. Lua error: not enough memory.
  15. Lua error: not enough memory.
  16. Lua error: not enough memory.
  17. Lua error: not enough memory.
  18. Cite error: Invalid <ref> tag; no text was provided for refs named DID
  19. Lua error: not enough memory.
  20. 20.0 20.1 Lua error: not enough memory.
  21. 21.0 21.1 Cite error: Invalid <ref> tag; no text was provided for refs named e order
  22. Lua error: not enough memory.
  23. Lua error: not enough memory.
  24. Lua error: not enough memory.
  25. 25.0 25.1 Lua error: not enough memory.
  26. Lua error: not enough memory.
  27. Lua error: not enough memory.
  28. Lua error: not enough memory.
  29. Lua error: not enough memory.
  30. Lua error: not enough memory.
  31. Lua error: not enough memory.
  32. Lua error: not enough memory.
  33. 33.0 33.1 33.2 Lua error: not enough memory.
  34. Lua error: not enough memory.
  35. Lua error: not enough memory.
  36. Lua error: not enough memory.
  37. Lua error: not enough memory.
  38. Lua error: not enough memory.
  39. Lua error: not enough memory.
  40. Lua error: not enough memory.
  41. Lua error: not enough memory.
  42. Lua error: not enough memory.
  43. Lua error: not enough memory.
  44. Lua error: not enough memory.
  45. Lua error: not enough memory.
  46. Lua error: not enough memory.
  47. Archived at Ghostarchive and the Wayback Machine: Lua error: not enough memory.
  48. Lua error: not enough memory.
  49. Lua error: not enough memory.
  50. Lua error: not enough memory.
  51. 51.0 51.1 Lua error: not enough memory.
  52. Lua error: not enough memory.
  53. Lua error: not enough memory.
  54. 54.0 54.1 Lua error: not enough memory.
  55. Lua error: not enough memory.
  56. Lua error: not enough memory.
  57. Lua error: not enough memory.
  58. Lua error: not enough memory.
  59. Lua error: not enough memory.
  60. Lua error: not enough memory.
  61. Lua error: not enough memory.
  62. Lua error: not enough memory.
  63. 63.0 63.1 63.2 Lua error: not enough memory.
  64. Lua error: not enough memory.
  65. Lua error: not enough memory.
  66. Lua error: not enough memory.
  67. Lua error: not enough memory.
  68. Lua error: not enough memory.
  69. 69.0 69.1 Lua error: not enough memory.
  70. Lua error: not enough memory.
  71. 71.0 71.1 71.2 Lua error: not enough memory.
  72. Lua error: not enough memory.
  73. Lua error: not enough memory.
  74. Lua error: not enough memory.
  75. 75.0 75.1 75.2 Lua error: not enough memory.
  76. Lua error: not enough memory.
  77. Lua error: not enough memory.
  78. Lua error: not enough memory.
  79. Lua error: not enough memory.
  80. Lua error: not enough memory.
  81. Cite error: Invalid <ref> tag; no text was provided for refs named Braz build
  82. Lua error: not enough memory.
  83. 83.0 83.1 Lua error: not enough memory.
  84. Lua error: not enough memory.
  85. Lua error: not enough memory.
  86. 86.0 86.1 86.2 Lua error: not enough memory.
  87. 87.0 87.1 Lua error: not enough memory.
  88. Lua error: not enough memory.
  89. Lua error: not enough memory.
  90. Lua error: not enough memory.
  91. Lua error: not enough memory.
  92. Lua error: not enough memory.
  93. Cite error: Invalid <ref> tag; no text was provided for refs named DID_BRAZIL
  94. 94.0 94.1 Lua error: not enough memory.
  95. Lua error: not enough memory.
  96. 96.0 96.1 96.2 Lua error: not enough memory.
  97. Lua error: not enough memory.
  98. Lua error: not enough memory.
  99. Lua error: not enough memory.
  100. Lua error: not enough memory. on YouTubeLua error: not enough memory.
  101. Lua error: not enough memory.
  102. Lua error: not enough memory.
  103. Lua error: not enough memory.
  104. Lua error: not enough memory.
  105. Lua error: not enough memory.
  106. Lua error: not enough memory.
  107. 107.0 107.1 107.2 Lua error: not enough memory.
  108. Lua error: not enough memory.
  109. Lua error: not enough memory.
  110. Lua error: not enough memory.
  111. 111.0 111.1 Lua error: not enough memory.
  112. 112.0 112.1 Lua error: not enough memory.
  113. 113.0 113.1 Lua error: not enough memory.
  114. 114.0 114.1 Lua error: not enough memory.
  115. Lua error: not enough memory.
  116. Lua error: not enough memory.
  117. Lua error: not enough memory.
  118. Lua error: not enough memory.
  119. 119.0 119.1 119.2 119.3 119.4 119.5 119.6 119.7 119.8 Lua error: not enough memory.
  120. Lua error: not enough memory.
  121. Lua error: not enough memory.
  122. Lua error: not enough memory.
  123. Lua error: not enough memory.
  124. Lua error: not enough memory.
  125. Lua error: not enough memory.
  126. Lua error: not enough memory.
  127. Lua error: not enough memory.
  128. Lua error: not enough memory.
  129. Lua error: not enough memory.
  130. Lua error: not enough memory.
  131. Lua error: not enough memory.
  132. Lua error: not enough memory.
  133. Lua error: not enough memory.
  134. Lua error: not enough memory.
  135. Lua error: not enough memory.
  136. Lua error: not enough memory.
  137. Lua error: not enough memory.
  138. Lua error: not enough memory.
  139. Lua error: not enough memory.
  140. Lua error: not enough memory.
  141. Lua error: not enough memory.
  142. Lua error: not enough memory.
  143. Lua error: not enough memory.
  144. Lua error: not enough memory.
  145. 145.0 145.1 145.2 145.3 145.4 145.5 Lua error: not enough memory.
  146. Lua error: not enough memory.
  147. Lua error: not enough memory.
  148. Lua error: not enough memory.
  149. Lua error: not enough memory.
  150. Lua error: not enough memory.
  151. Lua error: not enough memory.
  152. Lua error: not enough memory.
  153. Lua error: not enough memory.
  154. Lua error: not enough memory.
  155. Lua error: not enough memory.
  156. Lua error: not enough memory.
  157. Lua error: not enough memory.
  158. Lua error: not enough memory.
  159. Lua error: not enough memory.
  160. Lua error: not enough memory.
  161. Lua error: not enough memory.
  162. Lua error: not enough memory.
  163. Lua error: not enough memory.
  164. Lua error: not enough memory.
  165. Lua error: not enough memory.
  166. Lua error: not enough memory.
  167. Lua error: not enough memory.
  168. Lua error: not enough memory.
  169. Lua error: not enough memory.
  170. Lua error: not enough memory.
  171. Lua error: not enough memory.
  172. Lua error: not enough memory.
  173. Lua error: not enough memory.
  174. Lua error: not enough memory.
  175. Lua error: not enough memory.
  176. Lua error: not enough memory.
  177. Lua error: not enough memory.
  178. Lua error: not enough memory.
  179. Lua error: not enough memory.
  180. Lua error: not enough memory.
  181. Lua error: not enough memory.
  182. Lua error: not enough memory.
  183. Lua error: not enough memory.
  184. Lua error: not enough memory.
  185. Lua error: not enough memory.
  186. Lua error: not enough memory.
  187. Lua error: not enough memory.
  188. Cite error: Invalid <ref> tag; no text was provided for refs named dla
  189. Lua error: not enough memory.
  190. Lua error: not enough memory.
  191. Lua error: not enough memory.
  192. Lua error: not enough memory.
  193. Lua error: not enough memory.
  194. Lua error: not enough memory.
  195. Lua error: not enough memory.
  196. Lua error: not enough memory.
  197. Lua error: not enough memory.
  198. Lua error: not enough memory.
  199. Lua error: not enough memory.
  200. Lua error: not enough memory.
  201. Lua error: not enough memory.
  202. Lua error: not enough memory.
  203. Lua error: not enough memory.
  204. Lua error: not enough memory.
  205. Lua error: not enough memory.
  206. Lua error: not enough memory.
  207. Lua error: not enough memory.
  208. Lua error: not enough memory.
  209. Lua error: not enough memory.
  210. Lua error: not enough memory.
  211. Lua error: not enough memory.
  212. Lua error: not enough memory.
  213. Lua error: not enough memory.
  214. Lua error: not enough memory.
  215. Lua error: not enough memory.
  216. Lua error: not enough memory.
  217. Lua error: not enough memory.
  218. Lua error: not enough memory.
  219. Lua error: not enough memory.
  220. Lua error: not enough memory.
  221. Lua error: not enough memory.
  222. Lua error: not enough memory.
  223. Lua error: not enough memory.
  224. Lua error: not enough memory.
  225. Lua error: not enough memory.
  226. Lua error: not enough memory.
  227. Lua error: not enough memory.
  228. Lua error: not enough memory.
  229. Lua error: not enough memory.
  230. Lua error: not enough memory.
  231. Lua error: not enough memory.
  232. Lua error: not enough memory.
  233. Lua error: not enough memory.
  234. Lua error: not enough memory.
  235. Lua error: not enough memory.
  236. Lua error: not enough memory.
  237. Lua error: not enough memory.
  238. Lua error: not enough memory.
  239. Lua error: not enough memory.
  240. Lua error: not enough memory.
  241. Lua error: not enough memory.
  242. Lua error: not enough memory.
  243. Lua error: not enough memory.
  244. Lua error: not enough memory.
  245. Lua error: not enough memory.
  246. Lua error: not enough memory.
  247. Lua error: not enough memory.
  248. Lua error: not enough memory.
  249. Lua error: not enough memory.
  250. Lua error: not enough memory.
  251. Lua error: not enough memory.
  252. Lua error: not enough memory.
  253. Lua error: not enough memory.
  254. Lua error: not enough memory.
  255. Lua error: not enough memory.
  256. Lua error: not enough memory.
  257. Lua error: not enough memory.
  258. Lua error: not enough memory.
  259. Lua error: not enough memory.
  260. Lua error: not enough memory.
  261. Lua error: not enough memory.
  262. Lua error: not enough memory.
  263. Lua error: not enough memory.
  264. Lua error: not enough memory.
  265. Lua error: not enough memory.Lua error: not enough memory.Lua error: not enough memory.Lua error: not enough memory.
  266. Lua error: not enough memory.
  267. Lua error: not enough memory.
  268. Lua error: not enough memory.
  269. Lua error: not enough memory.
  270. Lua error: not enough memory.
  271. Lua error: not enough memory.
  272. Lua error: not enough memory.
  273. Lua error: not enough memory.
  274. Lua error: not enough memory.
  275. Lua error: not enough memory.
  276. Lua error: not enough memory.
  277. Lua error: not enough memory.
  278. Lua error: not enough memory.
  279. Lua error: not enough memory.
  280. Lua error: not enough memory.
  281. Lua error: not enough memory.
  282. Lua error: not enough memory.
  283. Lua error: not enough memory.
  284. Lua error: not enough memory.
  285. Lua error: not enough memory.
  286. Lua error: not enough memory.
  287. Lua error: not enough memory.
  288. Lua error: not enough memory.
  289. Lua error: not enough memory.
  290. Lua error: not enough memory.
  291. Lua error: not enough memory.
  292. Lua error: not enough memory.
  293. Lua error: not enough memory.
  294. Lua error: not enough memory.
  295. Lua error: not enough memory.
  296. Lua error: not enough memory.
  297. Lua error: not enough memory.
  298. Lua error: not enough memory.
  299. Lua error: not enough memory.
  300. Lua error: not enough memory.
  301. Lua error: not enough memory.
  302. Lua error: not enough memory.
  303. Lua error: not enough memory.: '…this involved modifying the JAS 39 Gripen aircraft to NATO standards and for in‐flight refuelling.'
  304. Cite error: Invalid <ref> tag; no text was provided for refs named gripen_demo
  305. Cite error: Invalid <ref> tag; no text was provided for refs named FI_Saab_reveals_Demo
  306. Cite error: Invalid <ref> tag; no text was provided for refs named NG_capabilities
  307. Lua error: not enough memory.
  308. Lua error: not enough memory.
  309. Lua error: not enough memory.
  310. 310.0 310.1 Lua error: not enough memory.
  311. Lua error: not enough memory.
  312. Lua error: not enough memory.
  313. Lua error: not enough memory.
  314. Lua error: not enough memory.
  315. Lua error: not enough memory.
  316. Lua error: not enough memory.
  317. Lua error: not enough memory.
  318. Cite error: Invalid <ref> tag; no text was provided for refs named sea_gripen_1411
  319. Lua error: not enough memory.
  320. Lua error: not enough memory.
  321. Cite error: Invalid <ref> tag; no text was provided for refs named UAV
  322. 322.0 322.1 322.2 322.3 322.4 Lua error: not enough memory.
  323. 323.0 323.1 Lua error: not enough memory.
  324. Lua error: not enough memory.
  325. Lua error: not enough memory.
  326. Cite error: Invalid <ref> tag; no text was provided for refs named grip_so_far
  327. Lua error: not enough memory.
  328. Lua error: not enough memory.
  329. Lua error: not enough memory.
  330. Lua error: not enough memory.
  331. Lua error: not enough memory. Note page has two entries for 31 May 2010 accident with the same serial number.
  332. Lua error: not enough memory.
  333. Lua error: not enough memory.
  334. Lua error: not enough memory.
  335. Lua error: not enough memory.
  336. Lua error: not enough memory.
  337. Lua error: not enough memory.
  338. Lua error: not enough memory.
  339. Lua error: not enough memory..
  340. Lua error: not enough memory..
  341. 341.0 341.1 Lua error: not enough memory..
  342. 342.0 342.1 342.2 342.3 342.4 Lua error: not enough memory.
  343. 343.0 343.1 343.2 343.3 Cite error: Invalid <ref> tag; no text was provided for refs named Reaktionsmotor 12 idg.se
  344. Lua error: not enough memory. on YouTubeLua error: not enough memory..
  345. Lua error: not enough memory.
  346. Lua error: not enough memory.
  347. Lua error: not enough memory..
  348. Lua error: not enough memory.
  349. Lua error: not enough memory.
  350. Lua error: not enough memory.
  351. Lua error: not enough memory.
  352. Lua error: not enough memory.
  353. Lua error: not enough memory.

Lua error: not enough memory.

Bibliography

  • Lua error: not enough memory.
  • Lua error: not enough memory.
  • Lua error: not enough memory.
  • Lua error: not enough memory.
  • Lua error: not enough memory.
  • Lua error: not enough memory.
  • Lua error: not enough memory.
  • Lua error: not enough memory.
  • Lua error: not enough memory.
  • Lua error: not enough memory.
  • Lua error: not enough memory.
  • Lua error: not enough memory.
  • Lua error: not enough memory.
  • Lua error: not enough memory.
  • Lua error: not enough memory..
  • Lua error: not enough memory.
  • Lua error: not enough memory.
  • Lua error: not enough memory.
  • Lua error: not enough memory.
  • Lua error: not enough memory.
  • Lua error: not enough memory.
  • Lua error: not enough memory..
  • Lua error: not enough memory.
  • Lua error: not enough memory.
  • Lua error: not enough memory.
  • Lua error: not enough memory.
  • Lua error: not enough memory.
  • Lua error: not enough memory.
  • Lua error: not enough memory.

Further reading

  • Lua error: not enough memory.
  • Lua error: not enough memory.
  • Lua error: not enough memory..
  • Lua error: not enough memory.
  • Lua error: not enough memory.

External links

Lua error: not enough memory.

Template:Saab aircraft Template:Swedish military aircraft Template:Thai fighter designations Template:FAB aircraft designations

Lua error: not enough memory.
