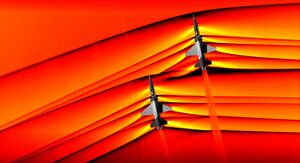

The interaction of shock waves from two supersonic aircraft, photographed for the first time by NASA using the Schlieren method in 2019.

A supersonic aircraft is an aircraft capable of supersonic flight, that is, flying faster than the speed of sound (Mach 1). Supersonic aircraft were developed in the second half of the twentieth century. Supersonic aircraft have been used for research and military purposes, but only two supersonic aircraft, the Tupolev Tu-144 (first flown on December 31, 1968) and the Concorde (first flown on March 2, 1969), ever entered service for civil use as airliners. Fighter jets are the most common example of supersonic aircraft.

The aerodynamics of supersonic flight is called compressible flow because of the compression associated with the shock waves or "sonic boom" created by any object traveling faster than sound.

Aircraft flying at speeds above Mach 5 are called hypersonic aircraft.

History

Main article: Sound barrier
File:Bell X-1 in flight.jpg
Bell X-1

The first aircraft to fly supersonic in level flight was the American Bell X-1 experimental plane which was powered by a 6,000-pound (2,700 kg) thrust rocket powered by liquid oxygen and ethyl alcohol. Most supersonic aircraft have been military or experimental aircraft.

Aviation research during World War II led to the creation of the first rocket- and jet-powered aircraft. Several claims of breaking the sound barrier during the war subsequently emerged. However, the first recognized flight exceeding the speed of sound by a manned aircraft in controlled level flight was performed on October 14, 1947 by the experimental Bell X-1 research rocket plane piloted by Chuck Yeager. The first production plane to break the sound barrier was an F-86 Canadair Sabre with the first supersonic woman pilot, Jacqueline Cochran, at the controls.[1] According to David Masters,[2] the DFS 346 prototype captured in Germany by the Soviets, after being released from a B-29 at 32800 ft (10000 m), reached 683 mph (1100 km/h) late in 1951, which would have exceeded Mach 1 at that height. The pilot in these flights was the German Wolfgang Ziese.

On August 21, 1961, a Douglas DC-8-43 (registration N9604Z) exceeded Mach 1 in a controlled dive during a test flight at Edwards Air Force Base. The crew were William Magruder (pilot), Paul Patten (copilot), Joseph Tomich (flight engineer), and Richard H. Edwards (flight test engineer).[3] This was the first intentional supersonic flight by a civilian airliner, and the only one ever performed by a civilian airliner other than the Concorde or Tu-144.[3]

In the 1960s and 1970s, many design studies for supersonic airliners were done and eventually two types entered service, the Soviet Tupolev Tu-144 (1968) and Anglo-French Concorde (1969). However political, environmental and economic obstacles and one fatal Concorde crash prevented them from being used to their full commercial potential.

Design principles

Supersonic flight brings with it substantial technical challenges, as the aerodynamics of supersonic flight are dramatically different from those of subsonic flight (i.e., flight at speeds slower than that of sound). In particular, aerodynamic drag rises sharply as the aircraft passes the transonic regime, requiring much greater engine power and more streamlined airframes.

Wings

File:Sr71 1.jpg
A Lockheed SR-71 Blackbird supersonic reconnaissance aircraft

To keep drag low, wingspan must be limited, which also reduces the aerodynamic efficiency when flying slowly. Since a supersonic aircraft must also take off and land at a relatively slow speed, its aerodynamic design must be a compromise between the requirements for both ends of the speed range.

One approach to resolving this compromise is the use of a variable-geometry wing, commonly known as the "swing-wing," which spreads wide for low-speed flight and then sweeps sharply, usually backwards, for supersonic flight. However, swinging affects the longitudinal trim of the aircraft and the swinging mechanism adds weight and cost. Use of a delta wing, such as those used on the Aerospatiale-BAC Concorde generates a vortex which energises the flow on the upper surface of the wing at high speeds and attack angles, delaying flow separation, and giving the aircraft a very high stall angle. It also solves the issue of fluid compressibility at transonic and supersonic speeds. However, it is, of course, inefficient at lower speeds due to the requirement of a high angle of attack, and therefore need the use of flaps.

Heating

Main article: Aerodynamic heating

Another problem is the heat generated by friction as the air flows over the aircraft. Most subsonic designs use aluminium alloys such as Duralumin, which are cheap and easy to work but lose their strength quickly at high temperatures. This limits maximum speed to around Mach 2.2.

Most supersonic aircraft, including many military fighter aircraft, are designed to spend most of their flight at subsonic speeds, and only to exceed the speed of sound for short periods such as when intercepting an enemy aircraft. A smaller number, such as the Lockheed SR-71 Blackbird reconnaissance aircraft and the Concorde supersonic airliner, have been designed to cruise continuously at speeds above the speed of sound, and with these designs the problems of supersonic flight are more severe.

Engines

Some early supersonic aircraft, including the first, relied on rocket power to provide the necessary thrust, although rockets burn a lot of fuel and so flight times were short. Early turbojets were more fuel-efficient but did not have enough thrust and some experimental aircraft were fitted with both a turbojet for low-speed flight and a rocket engine for supersonic flight. The invention of the afterburner, in which extra fuel is burned in the jet exhaust, made these mixed powerplant types obsolete. The turbofan engine passes additional cold air around the engine core, further increasing its fuel efficiency, and supersonic aircraft today are powered by turbofans fitted with afterburners.

Supersonic aircraft usually use low bypass turbofans as they have acceptable efficiency below the speed of sound as well as above; or if supercruise is needed turbojet engines may be desirable as they give less nacelle drag at supersonic speeds. The Pratt & Whitney J58 engines of the Lockheed SR-71 Blackbird operated in 2 ways, taking off and landing as turbojets with no bypass, but bypassing some of the compressor air to the afterburner at higher speeds. This allowed the Blackbird to fly at over Mach 3, faster than any other production aircraft. The heating effect of air friction at these speeds meant that a special fuel had to be developed which did not break down in the heat and clog the fuel pipes on its way to the burner.

Another high-speed powerplant is the ramjet. This needs to be flying fairly fast before it will work at all.

Supersonic flight

Supersonic aerodynamics is simpler than subsonic aerodynamics because the airsheets at different points along the plane often cannot affect each other. Supersonic jets and rocket vehicles require several times greater thrust to push through the extra aerodynamic drag experienced within the transonic region (around Mach 0.85–1.2). At these speeds aerospace engineers can gently guide air around the fuselage of the aircraft without producing new shock waves, but any change in cross area farther down the vehicle leads to shock waves along the body. Designers use the Supersonic area rule and the Whitcomb area rule to minimize sudden changes in size.

The sound source has now broken through the sound speed barrier, and is traveling at 1.4 times the speed of sound, c (Mach 1.4). Because the source is moving faster than the sound waves it creates, it actually leads the advancing wavefront. The sound source will pass by a stationary observer before the observer actually hears the sound it creates.
Conical shockwave with its hyperbola-shaped ground contact zone in yellow

However, in practical applications, a supersonic aircraft must operate stably in both subsonic and supersonic profiles, hence aerodynamic design is more complex.

One problem with sustained supersonic flight is the generation of heat in flight. At high speeds aerodynamic heating can occur, so an aircraft must be designed to operate and function under very high temperatures. Duralumin, a material traditionally used in aircraft manufacturing, starts to lose strength and deform at relatively low temperatures, and is unsuitable for continuous use at speeds above Mach 2.2 to 2.4. Materials such as titanium and stainless steel allow operations at much higher temperatures. For example, the Lockheed SR-71 Blackbird jet could fly continuously at Mach 3.1 which could lead to temperatures on some parts of the aircraft reaching above 315 °C (600 °F).

Another area of concern for sustained high-speed flight is engine operation. Jet engines create thrust by increasing the temperature of the air they ingest, and as the aircraft speeds up, the compression process in the intake causes a temperature rise before it reaches the engines. The maximum allowable temperature of the exhaust is determined by the materials in the turbine at the rear of the engine, so as the aircraft speeds up, the difference in intake and exhaust temperature that the engine can create, by burning fuel, decreases, as does the thrust. The higher thrust needed for supersonic speeds had to be regained by burning extra fuel in the exhaust.

Intake design was also a major issue. As much of the available energy in the incoming air has to be recovered, known as intake recovery, using shock waves in the supersonic compression process in the intake. At supersonic speeds the intake has to make sure that the air slows down without excessive pressure loss. It has to use the correct type of shock waves, oblique/plane, for the aircraft design speed to compress and slow the air to subsonic speed before it reaches the engine. The shock waves are positioned using a ramp or cone which may need to be adjustable depending on trade-offs between complexity and the required aircraft performance.

An aircraft able to operate for extended periods at supersonic speeds has a potential range advantage over a similar design operating subsonically. Most of the drag an aircraft sees while speeding up to supersonic speeds occurs just below the speed of sound, due to an aerodynamic effect known as wave drag. An aircraft that can accelerate past this speed sees a significant drag decrease, and can fly supersonically with improved fuel economy. However, due to the way lift is generated supersonically, the lift-to-drag ratio of the aircraft as a whole drops, leading to lower range, offsetting or overturning this advantage.

The key to having low supersonic drag is to properly shape the overall aircraft to be long and thin, and close to a "perfect" shape, the von Karman ogive or Sears-Haack body. This has led to almost every supersonic cruising aircraft looking very similar to every other, with a very long and slender fuselage and large delta wings, cf. SR-71, Concorde, etc. Although not ideal for passenger aircraft, this shaping is quite adaptable for bomber use.

In the 1960s and 1970s, many design studies for supersonic airliners were done and eventually two types entered service, the Soviet Tupolev Tu-144 (1968) and Anglo-French Concorde (1969). However political, environmental and economic obstacles and one fatal Concorde crash prevented them from being used to their full commercial potential.

Transonic flight

Main article: Transonic flight
File:Transonic flow patterns.svg
Transonic flow patterns on an airfoil showing flow patterns at and above critical Mach number

Airflow can speed up or slow down locally at different points over an aircraft. In the region around Mach 1, some areas may experience supersonic flow while others are subsonic. This regime is called transonic flight. As the aircraft speed changes, pressure waves will form or move around. This can affect the trim, stability and controllability of the aircraft, and the aircraft will experience higher drag than subsonic or fully supersonic speeds. The designer needs to ensure that these effects are taken into account at all speeds.

Hypersonic flight

Main article: Hypersonic flight

Flight at speeds above about Mach 5 is often referred to as hypersonic. In this region the problems of drag and heating are even more acute. It is difficult to make materials which can stand the forces and temperatures generated by air resistance at these speeds.

Sonic boom

Main article: Sonic boom
The sound source is travelling at 1.4 times the speed of sound (Mach 1.4). Since the source is moving faster than the sound waves it creates, it leads the advancing wavefront.
File:Sonic boom.svg
A sonic boom produced by an aircraft moving at M=2.92, calculated from the cone angle of 20 degrees. An observer hears nothing until the shock wave, on the edges of the cone, crosses their location.
File:Mach cone.svg
Mach cone angle

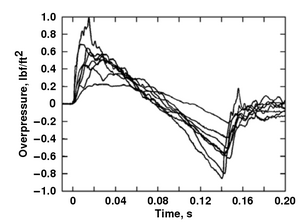

NASA data showing N-wave signature.[4]

A sonic boom is the sound associated with the shock waves created whenever an object traveling through the air travels faster than the speed of sound. Sonic booms generate significant amounts of sound energy, sounding similar to an explosion or a thunderclap to the human ear. The crack of a supersonic bullet passing overhead or the crack of a bullwhip are examples of a sonic boom in miniature.[5]

Sonic booms due to large supersonic aircraft can be particularly loud and startling, tend to awaken people, and may cause minor damage to some structures. They led to prohibition of routine supersonic flight over land. Although they cannot be completely prevented, research suggests that with careful shaping of the vehicle the nuisance due to them may be reduced to the point that overland supersonic flight may become a practical option.

Supercruise

Main article: Supercruise

Supercruise is sustained supersonic flight of a supersonic aircraft with a useful cargo, passenger, or weapons load performed efficiently, which typically precludes the use of highly inefficient afterburners or "reheat". Many well known supersonic military aircraft not capable of supercruise can only maintain Mach 1+ flight in short bursts, typically with afterburners. Aircraft such as the SR-71 Blackbird are designed to cruise at supersonic speed with afterburners enabled.

One of the best known examples of an aircraft capable of supercruise was Concorde. Due to its long service as a commercial airliner, Concorde holds the record for the most time spent in supercruise; more than all other aircraft combined.[6]

Supersonic transports

File:Concorde on Bristol.jpg
The fuselage of Concorde had an extremely high fineness ratio.
Main article: Supersonic transport

A supersonic transport (SST) is a civil aircraft designed to transport passengers at speeds greater than the speed of sound. The only supersonic civilian aircraft to see service were the Soviet produced Tupolev Tu-144 which first flew in 1968 and last transported passengers in 1978, with NASA retiring it from any use in 1997; and the Franco-British produced Concorde, which first flew in 1969 and remained in service until 2003. Since 2003, there have been no supersonic civilian aircraft in service.

A key feature of these designs is the ability to maintain supersonic cruise for long periods, so low drag is essential to limit fuel consumption to a practical and economic level. As a consequence, these airframes are highly streamlined and the wings have a very short span. The requirement for low speeds when taking off and landing is met by using vortex lift: as the aircraft slows, lift must be restored by raising the nose to increase the angle of attack of the wing. The sharply swept leading edge causes the air to twist as it flows over the wing, speeding up the airflow locally and maintaining lift.

Other SST projects have included:

Supersonic business jet

File:Aerion SBJ Model.jpg
Aerion SBJ model
Main article: Supersonic business jet

Supersonic business jets (SSBJ) are a proposed class of small supersonic aircraft. None have yet flown.

Typically intended to transport about ten passengers, SSBJs are about the same size as traditional subsonic business jets.

Projects for both large-scale and business jet (see lower) passenger supersonic and hypersonic airliners (Aerion SBJ, Spike S-512, HyperMach SonicStar, Next Generation Supersonic Transport, Tupolev Tu-444, Gulfstream X-54, LAPCAT, Reaction Engines LAPCAT A2, Zero Emission Hyper Sonic Transport, SpaceLiner, etc.) were proposed and now are under development.

Supersonic strategic bombers

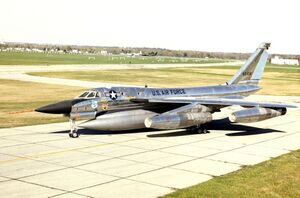

Convair B-58A Hustler
File:North American XB-70 in Flight EC68-2131.jpg
XB-70 Valkyrie
File:Russian Air Force Tupolev Tu-22M3 Beltyukov.jpg
Tupolev Tu-22M3
File:A B-1 Lancer performs a fly-by during a firepower demonstration.jpg
B-1B Lancer
File:Kremlin Tupolev Tu-160.jpg
Tupolev Tu-160

A strategic bomber must carry a large bomb load over long distances. Consequently, it is a large aircraft typically with an empty weight exceeding 25,000 kg. Some have also been designed for related roles such as strategic reconnaissance and anti-shipping strike.

Typically the aircraft will cruise subsonically for most of its flight to conserve fuel, before accelerating to supersonic speed for its bombing run.[7]

Few supersonic strategic bombers have entered service. The earliest type, the Convair B-58 Hustler, first flew in 1956 and the most recent, the Rockwell B-1B Lancer, in 1983. Although this and a few other types are still in service today, none remains in production.

Types to have flown include:

Supersonic strategic reconnaissance

Some supersonic strategic bombers, such as the Sukhoi T-4 are also capable of the reconnaissance role (although the Sukhoi remained a prototype).

The Lockheed SR-71 Blackbird was specifically designed for the role, and was a larger development of the Lockheed A-12 reconnaissance aircraft which first flew in 1962.

Supersonic fighter/attack jets

Supersonic fighters and related aircraft are sometimes called fast jets. They make up the overwhelming majority of supersonic aircraft and some, such as the Mikoyan-Gurevich MiG-21, Lockheed F-104 Starfighter and Dassault Mirage III, have been produced in large numbers.

Many military supersonic fighters and similar aircraft of fourth- and fifth- generations are under development in several countries, including Russia, China, Japan, South Korea, India, Iran and the United States.

United States

Soviet Union/Russia

China

France

Sweden

Iran

Japan

India

Israel

South Korea

United Kingdom

France/United Kingdom

Germany/Italy/United Kingdom

Germany/Italy/Spain/United Kingdom

Pakistan

South Africa

Taiwan

Supersonic research aircraft

File:X-15 in flight.jpg
North American X-15
